Product Description

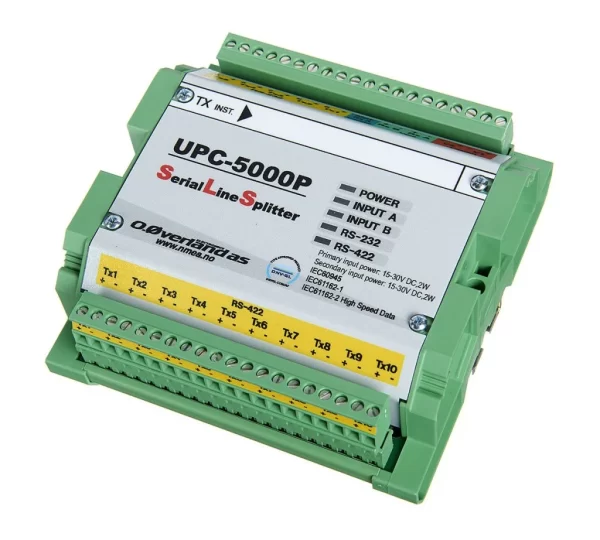

The UPC 5000P is a DNV-approved serial line splitter featuring 2 separate inputs and 15 outputs. It boasts dual power input with autoswitch functionality. Notably, both the power supply and signal inputs are galvanically isolated from the outputs, ensuring reliable and safe operation.
Additional information
Specification
| Powersupply main | 12-30Vdc 2W |
| Powersupply sec | 12-30Vdc 2W |
| Input | 1-20V, 0,5mA min, RS232 RS422, RS485 Max: 115200 baud |
| Outputs | 10 of RS-422, 50mA max 5 of RS-232. 50mA max |
| Dimensions (mm) | L-128 x H-50 x W-128 |
