Product Description

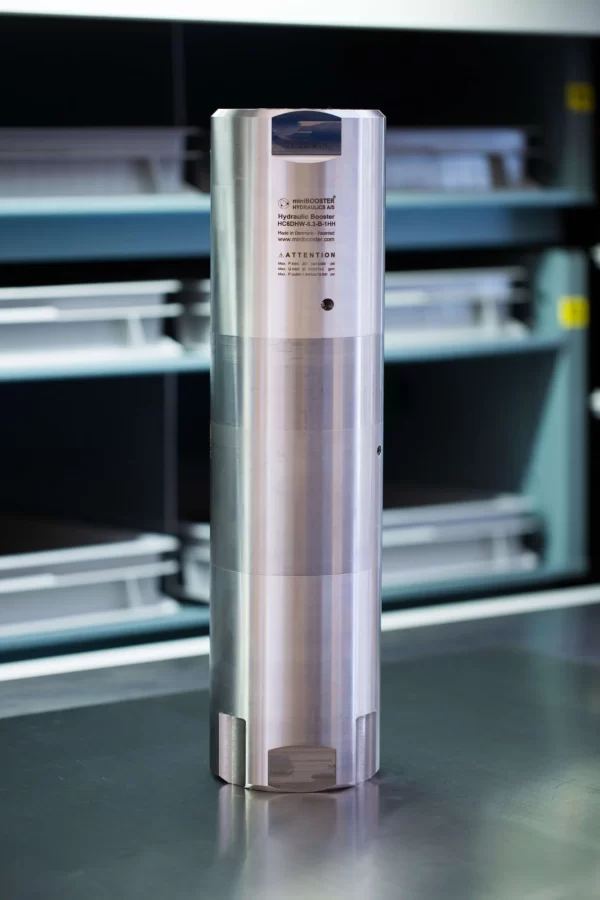

The HC6DH – 8.2 – B – W is a high flow dual-acting miniBOOSTER stainless steel 316L unit which is capable of delivering up to 15.4 l/min flow on the high-pressure end. Like other miniBOOSTER models, the HC6DHW raises supplied pressure to a higher outlet pressure and automatically compensates for consumption of oil to maintain the high pressure. Adjustment of the outlet pressure is carried out by varying the supplied pressure. Relative to its flow capability, the HC6DHW is a compact unit weighing 38.0 kg.
Additional information
Product Specifications
- HC6DHW versions: 7 different intensification factors
- PIN: 20-207 bar
- PH: 1380 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 38.0 kg.
Model Versions:
- A model = no dump valve
- B model = with dump valve
Material certificate 3.1 on request
Flow Rate
| Intensification Factor | Max. Intensified Outlet Flow (l/min) | Max. Inlet Flow (l/min) |
|---|---|---|
| 4.0 | 15.4 | 50.0 |
| 4.9 | 12.5 | 50.0 |
| 6.3 | 9.7 | 50.0 |
| 8.2 | 7.5 | 50.0 |
| 11.1 | 4.5 | 50.0 |
| 13.2 | 3.8 | 50.0 |
| 16.0 | 3.1 | 50.0 |
Functions Description
The basic operation is illustrated in the function diagram. Oil is fed through the directional valve CV to the IN port, flowing freely through the check valves 2x KV1, 2x KV2 and DV to the high-pressure side H. In this condition maximum flow through the booster is achieved giving a fast-forward function. When pump pressure is reached on the high-pressure side H, valves KV1, KV2 and DV will close. The end pressure will be achieved by the oscillating pump units OP1 and OP2 by turns. The unit will automatically stall when end pressure on the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP1 and OP2 units will automatically operate to maintain the end pressure. It is possible to change the high-pressure connection H to the opposite end of the booster.
Function Diagram
Dimensions
Connection Types
| Connection | IN / R | H1 / H2 | I1 / I2 |
|---|---|---|---|
| 1 | 1/2″ BSPP | M30 x 1.5 | 1/8″ BSPP |
High-pressure adapters
Dynamic seals
| Code | Seal material | Outlet pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 1,380 bar HP |
| HP | H-PUR / PEEK | Max 1,380 bar HP |
Ordering an HC6DHW
HC6DHW-…………..: with Bypass Valve (BPV)
Ordering example of an HC6HDW with i = 4.0, DV incorporated, BSPP connections and H-PUR dynamic seals:
- HC6DHW – 4.0 – B – 1HH for media < 5 cSt (mm2/s) tested in water
- HC6DHW – 4.0 – B – 1SHH for media > 5 cSt (mm2/s) tested in hydraulic oil3
Attention notes!
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted
Model
- HC6DHW
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
Connections.
- Select thread
- 1 = BSPP, media < 5 cSt
- 1S = BSPP, media > 5 cSt
Dynamic seals.
- Select seal type
- See dynamic seal table
Max. Tightening Torque BSPP
| IN / R | D1/D2 | ||
|
1/8″ BSPP | ||
| With stainless steel washer | 13.0 da/Nm | 2.0 da/Nm |
