Product Description

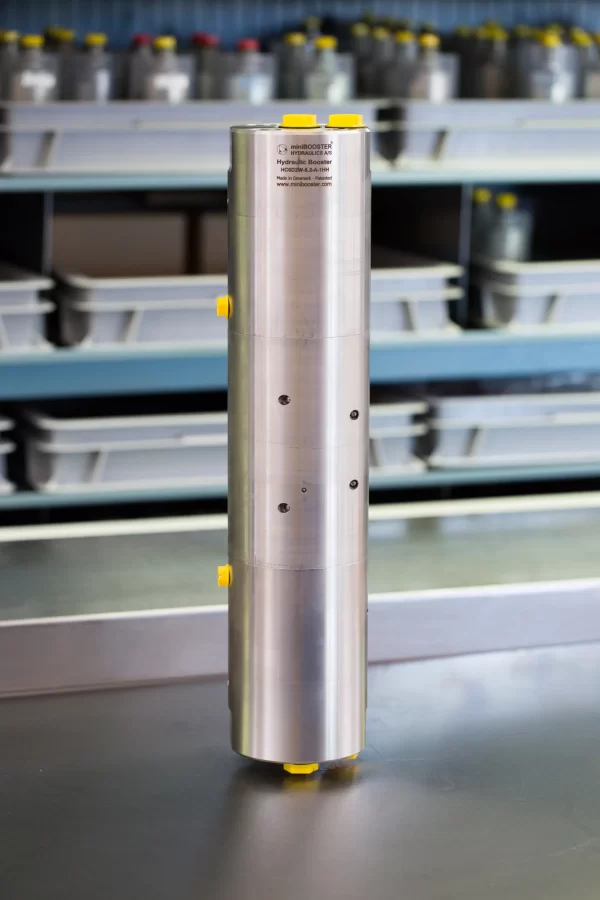

The HC6D2W – 5.2 – A  is a stainless steel 316L dual media miniBOOSTER unit capable of delivering a maximum flow of 28 l/min at the high-pressure end. Similar to other miniBOOSTER models, it elevates supplied pressure to achieve a higher outlet pressure and autonomously compensates for oil consumption to maintain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Despite its flow capability, the HC6D2W maintains a compact design, weighing just 24 kg.

Additional information

Product Specifications

  • HC6D2 versions: 9 different intensification factors
  • PIN: 20 – 207 bar
  • PH: 800 bar maximum
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PRETURN) x intensification factor
  • Drain connections: Max. 10 bar
  • Mounting: Inline tube
  • Weight: 24.0 kg.

Model Versions:

  • A model = no dump valve

Material certificate 3.1 on request

Flow Rate

Intensification factor (i) Max. intensified outlet flow (l/min) Max. inlet flow (l/min)
1.0 28.1 30.0
1.2 24.5 30.0
1.5 21.9 35.0
2.0 17.0 35.0
3.0 9.8 40.0
3.9 8.7 40.0
5.2 6.5 45.0
7.1 4.8 45.0
10.1 3.4 45.0

Functions Description

The system functions as follows: Media 1 flows freely through the IN port, driving the LP pistons via bistable valve BV1. Simultaneously, Media 2 is drawn from the suction inlet IN through 2 x KV1 check valves and pumped via 2 x KV2 to the high-pressure side H. This setup maximizes booster flow, enabling a fast-forward function. Automatic stall occurs upon reaching the end pressure on side H. If a pressure drop arises due to consumption or leakage, HP1 and HP2 units activate automatically to sustain the end pressure.

Function Diagram

Function Diagram HC6D2W-5.2-A

Dimensions

Dimension Diagram HC6D2W-5.2-A

Connection Types

Connection IN / R H1 / H2 S1 / S2 D1 / D2
1 1/2″ BSPP 1/2″ BSPP 1/2″ BSPP 1/8″ BSPP



Dynamic seals

Code Seal material media 1 / 2 Outlet pressure
HH H-PUR / H-PUR Max 800 bar HP
HE H-PUR / EPDM Max 500 bar HP
HP H-PUR / PEEK Max 800 bar HP
HEP H-PUR/EPDM / PEEK Max 800 bar HP
EP EPDM / PEEK Max 800 bar HP
EE EPDM / EPDM Max 500 bar HP

Ordering an HC6D2W

Ordering example of an HC6D2W with i = 3.9, with BSPP connections and H-PUR dynamic seals:

HC6D2W – 3.9 – A – 1HH

Model

  • HC6D2

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV

Connections.

  • Select thread
  • 1 = BSPP

Dynamic seals

  • Select seal type
  • See dynamic seal table

Max. tightening torque BSPP

IN / R IN / R S1 / S2 D1 / D2
1/2″ BSPP 1/2″ BSPP 1/2″ BSPP 1/8″ BSPP
With stainless steel washer 13.0 da/Nm 13.0 da/Nm 13.0 da/Nm 2.0 da/Nm
