Product Description

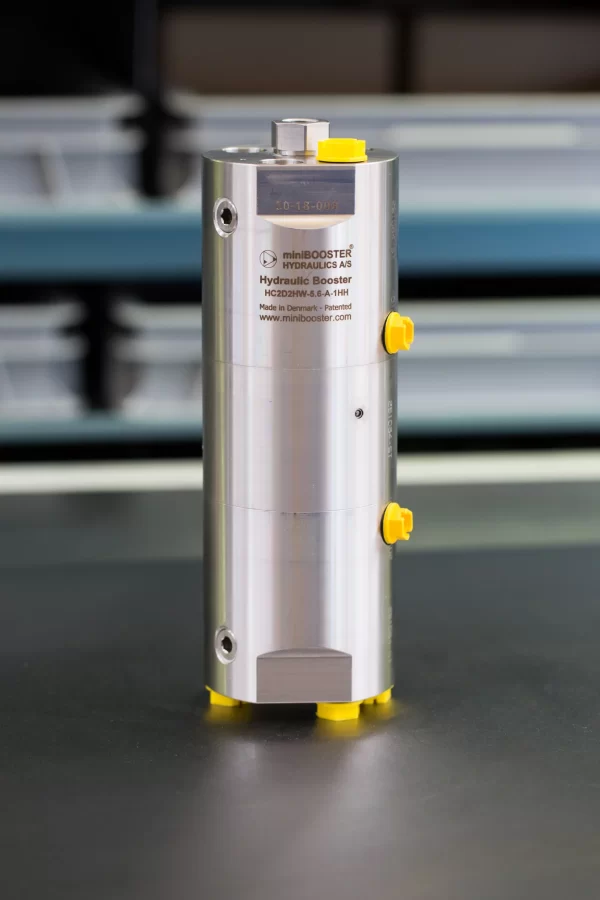

The HC2D2H – 5.6 – A – W is a compact stainless steel 316L dual media miniBOOSTER unit, capable of delivering up to 1.6 liters per minute flow at the high-pressure end. It effectively raises supplied pressure to a higher outlet pressure and automatically compensates for oil consumption to maintain consistent high pressure. Adjustment of outlet pressure is achieved by varying the supplied pressure. Despite its high flow capability, this miniBOOSTER model is lightweight, weighing just 8.0 kilograms.

Additional information

Product Specifications

  • HC2D2HW versions: 4 different intensification factors
  • PIN: 20 – 207 bar
  • PH: 1,380 bar maximum
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PRETURN) x intensification factor
  • Drain connections: Max. 5 bar
  • Mounting: Inline tube
  • Weight: 8.0 kg.

Model Versions:

  • A model = no dump valve

Material certificate 3.1 on request

Flow Rate

Intensification factor (i) Max. intensified outlet flow (l/min) Max. inlet flow (l/min)
4.0 1.6 7.0
5.6 1.3 8.0
8.0 1.0 8.0
12.0 0.6 8.0

Functions Description

The system operates as follows: Media 1 enters through the IN port, passing through the bistable valve BV1 to drive the LP pistons. Simultaneously, Media 2 is drawn in from the suction inlet IN, passing through check valves KV1 and then pumped through check valves KV2 to the high-pressure side H. This configuration enables maximum flow through the booster, facilitating a fast-forward function. The system will automatically stall once the end pressure on the high-pressure side H is reached. If there’s a pressure drop on the high-pressure side due to consumption or leakage, the HP1 and HP2 units will activate automatically to maintain the end pressure.

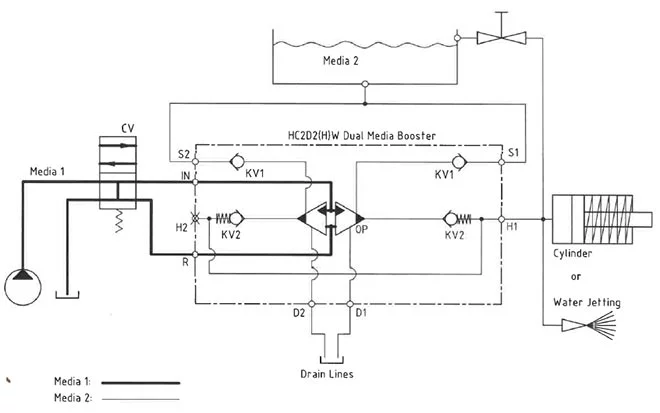

Function Diagram

Function Diagram HC2D2H-5.6-A-W

Dimensions

Dimensions Diagram HC2D2H-5.6-A-W

Connection Types

Connection IN / R H1 / H2 S1 / S2 D1 / D2
1 1/4″ BSPP 1/4″ BSPP 3/8″BSPP 1/8″ BSPP



High Pressure adapter

High Pressure adapter

Dynamic seals

Code Seal Material Media 1 / 2 Outlet Pressure
HH H-PUR / H-PUR Max 1,380 bar HP
HP H-PUR / PEEK Max 1,380  bar HP



Ordering an HC2D2HW

Ordering example of an HC2D2HW with i = 4.0, with BSPP connections and H-PUR dynamic seals:

HC2D2 – 4.0 – A – 1HH

Model

  • HC2D2HW

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV

Connections.

  • Select thread
  • 1 = BSPP

Dynamic seals

  • Select seal type
  • See dynamic seal table

Max. tightening torque BSPP

IN / R S1 / S2 D1 / D2
1/4″ BSPP 1/4″ BSPP 1/8″ BSPP
With stainless steel washer 1/4″ BSPP 1/4″ BSPP 1/8″ BSPP
