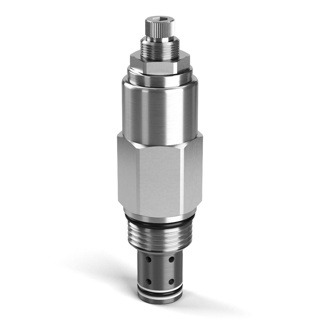

XR101S20 shock valve to cartridge
$685.62
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Enhance the performance and safety of your hydraulic system with the XR101S20 shock valve to cartridge Cross-Over Relief cartridge valves. These valves offer pressure protection to hydraulic motors, cylinders, and rotary actuators, supporting flow rates of up to 120 lpm (32 gpm) and pressures of up to 350 bar (5000 psi). Choose from single or dual cartridge, in-line, manifold, or motor mount configurations to suit your specific needs.
Additional information
Product Specifications
| Part Number | XR101S20 | Brand | Parker |
| Configuration | Dual Cross-Over Relief | Division | Hydraulic Cartridge Systems Division |
| Function | Bi-directional | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Standard Setting Pressure | 1000 PSI, 69 BAR | 69 bar | 1000 psi | Maximum Tank Pressure | 245 bar | 3500 psi |
| Maximum Operating Pressure | 245 bar | 3500 psi | Reseat Pressure | 80% of pressure setting |
| Pressure Control Range | 100-2000 PSI, 6.9-138 BAR | 6.9-138 bar | 100-2000 psi | Flow Rate | 16 GAL/MIN, 60 L/MIN | 16 Gal/min | 60 L/min |
| Leak Rate | 0.66 @ 75% Crack Pressure cm3/min | 10 @ 75% Crack Pressure drops/min | Maximum Flow Rate | 16 Gal/min | 60 L/min |
| Maximum Inlet Pressure Rating | 3500 PSI, 245 BAR | 245 bar | 3500 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Pressure Control Sensitivity | 23 per turn bar | 333 per turn psi | Maximum Pressure Setting | 138 bar | 2000 psi |
| Cavity Size | C10-2 | Maximum Operating Temperature | +250 °F | +121 °C |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Installation Torque | 16 lb-ft | 22 Nm | Mounting Type | Screw in cartridge valve |
| Actuation Type | Pressure Sensing | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Operation Type | Automatic | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.26 kg | 0.58 lb |
