TTF300-G11/2 TXW5A-20 T B15 M
$1,079.44
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

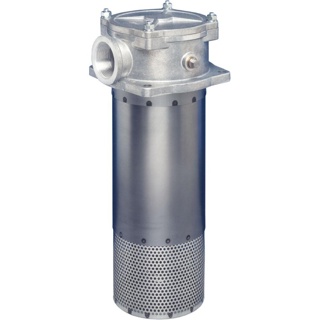

The TTF Series features efficient pre-filtration with a magnetic column and a quick response bypass with low hysteresis. It has a maximum pressure of 10 bar and maximum flow of 500 l/min. Optional features include a second return port and a filling port in the filter cover.
Additional information
Product Specifications
| Part Number | TTF820QBPEG243 | Brand | Parker |
| Product Type | Hydraulic Oil Filters | Product Series | TTF Series |
| Division | Hydraulic & Industrial Process Filtration Division EMEA | Industry | Materials Handling | Trucks and Buses | Construction |
| Seal Material | Nitrile | Options | Diffuser type T |
| Operating Pressure | 10 bar | 150 psi | Flow Rate | 0 to 500 l/min |
| Bypass Valve Pressure Rating | 1.5 bar | Micron Rating | 20 µm |
| Indicator Pressure Setting | No indicator | Product Style | Tanktop Mounted Return Line Filter |
| Technology | Filtration | Hydraulics | Operating Temperature | -40 to 100 °C |
| Connection Type | G1½ | Filter Element Type | 20Q Microglass |
| Indicator Type | No indicator, port plugged | Mounting Type | Tanktop Mounted |
