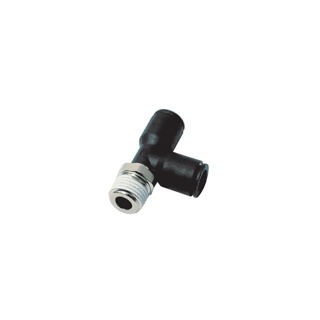

Stud Run Tee 6MMX1/4 BSPT Fitting for Pneumatic & Fluid Systems
$38.56
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Stud Run Tee 6MMX1/4 “BSPT is a precision-engineered component designed for use in various pneumatic and fluid control systems. This fitting features a 6mm tube size and a 1/4” BSPT thread for reliable and secure connections. Crafted from high-quality materials, the Stud Run Tee is durable, ensuring long-lasting performance in demanding environments. Its compact design allows for easy installation and tight spaces. Ideal for industrial applications, the tee connector facilitates the seamless integration of different components within a system for efficient operation. Whether you are building a new system or maintaining an existing one, the Stud Run Tee provides a dependable solution for your connection needs. Trust this fitting to deliver leak-free connections, optimal flow, and durability for a wide range of industrial and commercial applications. Upgrade your system with the reliable performance of the Stud Run Tee 6MMX1/4 “BSPT.
Additional information
Product Specifications
| Part Number | 3103 06 13 | Brand | Parker |
| Quantity per Box | 10 | Configuration | Tube to Port |
| Division | Low Pressure Connectors Europe Division | Body Material | TECHNICAL POLYMER |
| Gripping Ring Material | STAINLESS STEEL | O-Ring Material | NBR |
| Thread Sealant Material | PTFE | Media | Compressed Air, Other fluids: please consult us |
| Specifications Met | ISO 14743, DI: 97/23/EC (PED), DI : 2002/95/EC (RoHS), 2011/65/EC, DI : 1907/2006 (REACH) | Maximum Operating Pressure | 20 barg |
| Vacuum Pressure Rating | 755 mm-Hg | Shape | Run Tee |
| Connection 1 Size | 6 MM (O.D) | Connection 2 Size | R 1/4 |
| Product Style | Stud Fitting | Minimum Operating Temperature | -20 °C |
| Maximum Operating Temperature | 80 °C | Connection 2 Type | Male BSPT |
| Weight | 0,016 kg |
