Product Description

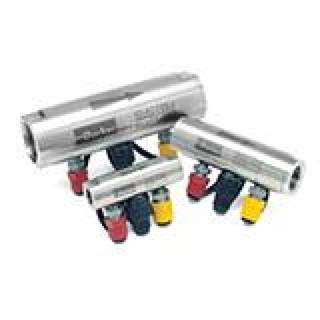

With the STI1144100 Sample point size. 1, the System 20 monitors, together with the inline sensor, provide real-time, precise measurements of oil or water flow, pressure, and temperature, all without interrupting your system’s operations.
Additional information
Product Specifications
| Part Number | STI1144100 | Brand | Parker |
| Product Type | Condition Monitor | Accuracy | +/- 2.5% FSD |
| Materials of Construction | Stainless Steel | Diameter | 41 mm |
| Division | Hydraulic & Industrial Process Filtration Division EMEA | Height | 66.5 mm |
| Industry | Industrial Manufacturing Equipment | Length | 137 mm |
| Body Material | Stainless Steel | Seal Material | Fluorocarbon |
| Specifications Met | CE Certification | Sensing Method | Differential Pressure |
| Operating Pressure | 420 bar | 6000 psi | Flow Rate | 20-100 l/min |
| Thread Size | G3/8 | Port Size | ¾” |
| Size | 1 | Product Style | Flow Meter |
| Technology | Filtration | Hydraulics | Operating Temperature | -10 to 110 °C | 14 to 230 °F |
| Minimum Fluid Temperature | -10 °C | Maximum Fluid Temperature | 110 °C |
| For Fluid Type | Mineral | Port Type | BSP |
| Weight | 3.5 kg | Width | 41 mm |
