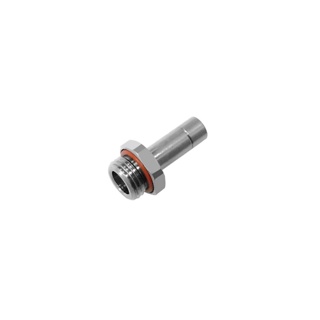

Stainless Steel 8mm x 1/8 BSPP Standpipe for Hydraulic Systems
$133.76
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The Standpipe s/s with 8mm x 1/8″ BSPP fitting is a high-quality, durable component designed for use in hydraulic systems. Made from stainless steel, this standpipe ensures optimal performance and longevity, even in demanding industrial environments. The precise 8mm x 1/8″ BSPP sizing guarantees a secure and dependable fit, reducing the risk of leaks or malfunctions.
This standpipe is ideal for applications where reliability and durability are essential, such as hydraulic machinery, fluid transfer systems, and pneumatic equipment. Its corrosion-resistant stainless steel construction makes it suitable for use in a wide range of industries, providing peace of mind that your system is built to last. Whether you are a professional engineer or DIY enthusiast, the Standpipe s/s with 8mm x 1/8″ BSPP fitting offers unmatched quality and performance for your hydraulic system needs.
Additional information
Product Specifications
| Part Number | 3831 08 10 | Brand | Parker |
| Product Type | Push-to-Connect Fittings | Product Series | LF 3800 |
| Quantity per Box | 2 | Configuration | Tube Stem to Port |
| Materials of Construction | Collet: Stainless Steel 316L | Nut: Stainless Steel 316L | Division | Low Pressure Connectors Europe Division |
| Industry | Chemicals Processing | Food & Beverage | Medical | Pharmaceuticals | Body Material | Stainless Steel 316L |
| Seal Material | FKM | Specifications Met | RG: 1935/2004/EC | RG : 1907/2006 (REACH) | USDA NSF H1: Grease | RG: 21CFR (FDA) | UL94 V-0: Seal | DI: 94/9/EC (ATEX) | DI : 2002/95/EC (RoHS) | DI: 97/23/EC (PED) | 2011/65/EC | ISO 14743 Pneumatic transmissions |
| Maximum Operating Pressure | 30 bar | 290 to 435 | 30.0 | 435 psi | Vacuum Pressure Rating | 1 bar | 755 mm-Hg | 14.5 psi |
| Shape | Straight | Connection 2 Size | G 1/8 |
| Connection 1 Size | 8 mm (O.D.) | Hex Size | 15 mm |
| Product Style | Plug-in fittings | Technology | Fluid & Gas Handling | Pneumatics |
| Minimum Operating Temperature | -13 °F | -25 °C | Maximum Operating Temperature | 150 °C | 302 °F |
| Connection 2 Type | Male BSPP | For Fluid Type | Other Fluids upon request | Air | Water |
| Connection Type | Tube Stem to Port | Connection 1 Type | O.D. |
| Weight | 0.01 kg |
