6mmx1/8 Standpipe s/s BSPP for Fluid & Air Control
$145.05
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

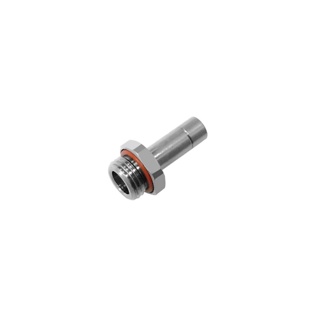

Designed for optimal fluid and air flow control, this standpipe features a stainless steel construction with a 6mm diameter and a 1/8 inch BSPP connection. The high-quality materials ensure durability and resistance to corrosion, making it suitable for a wide range of industrial applications. This standpipe is precision-engineered to provide a secure and reliable connection, promoting efficient fluid transfer and enhancing system performance.
The 6mm diameter offers versatility in various fluid handling tasks, while the 1/8 inch BSPP connection ensures compatibility with a range of systems and equipment. Ideal for use in hydraulic, pneumatic, and other fluid handling systems, this standpipe guarantees a leak-free and secure connection. Whether in manufacturing, automotive, or other industries, this standpipe is a reliable component for maintaining smooth operations. Invest in this stainless steel standpipe for robust performance, quality construction, and seamless integration into your system.
Additional information
Product Specifications
| Part Number | 3831 06 10 | Brand | Parker |
| Product Type | Push-to-Connect Fittings | Product Series | LF 3800 |
| Quantity per Box | 2 | Configuration | Tube Stem to Port |
| Materials of Construction | Collet: Stainless Steel 316L | Nut: Stainless Steel 316L | Division | Low Pressure Connectors Europe Division |
| Industry | Chemicals Processing | Food & Beverage | Pharmaceuticals | Medical | Body Material | Stainless Steel 316L |
| Seal Material | FKM | Specifications Met | RG: 1935/2004/EC | RG : 1907/2006 (REACH) | USDA NSF H1: Grease | RG: 21CFR (FDA) | UL94 V-0: Seal | DI: 94/9/EC (ATEX) | DI : 2002/95/EC (RoHS) | DI: 97/23/EC (PED) | 2011/65/EC | ISO 14743 Pneumatic transmissions |
| Maximum Operating Pressure | 30 bar | 290 to 435 | 30.0 | 435 psi | Vacuum Pressure Rating | 1 bar | 755 mm-Hg | 14.5 psi |
| Shape | Straight | Connection 1 Size | 6 mm (O.D.) |
| Connection 2 Size | G 1/8 | Hex Size | 13 mm |
| Product Style | Plug-in fittings | Technology | Fluid & Gas Handling | Pneumatics |
| Minimum Operating Temperature | -13 °F | -25 °C | Maximum Operating Temperature | 150 °C | 302 °F |
| Connection 2 Type | Male BSPP | For Fluid Type | Other Fluids upon request | Water | Air |
| Connection Type | Tube Stem to Port | Connection 1 Type | O.D. |
| Weight | 0.009 kg |
