Stainless Steel 4mm Standpipe with M5 Thread Size for Industrial Applications
$126.90
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

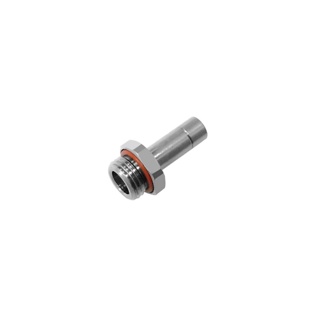

The standpipe s/s 4mmxm5 is a high-quality stainless-steel component designed for durability and resilience in various applications. With a diameter of 4mm and an M5 thread size, this standpipe is versatile and suited for a range of industrial uses. The stainless-steel construction provides excellent resistance to corrosion and ensures a long-lasting, reliable performance in different environments.
This standpipe is ideal for use in plumbing, hydraulic systems, and machinery where a strong and secure connection is essential. The 4mm diameter offers a precise fit for specific applications, while the M5 thread size ensures compatibility with various fittings and fixtures. Whether used in construction projects, automotive repairs, or manufacturing settings, this standpipe delivers exceptional functionality and peace of mind.
Overall, the standpipe s/s 4mmxm5 stands out for its robust design, corrosion resistance, and compatibility, making it an excellent choice for professionals and DIY enthusiasts alike. Trust this stainless-steel standpipe to provide superior performance and longevity in diverse industrial and commercial settings.
Additional information
Product Specifications
| Part Number | 3831 04 19 | Brand | Parker |
| Product Type | Push-to-Connect Fittings | Product Series | LF 3800 |
| Quantity per Box | 2 | Configuration | Tube Stem to Port |
| Materials of Construction | Collet: Stainless Steel 316L | Nut: Stainless Steel 316L | Division | Low Pressure Connectors Europe Division |
| Industry | Chemicals Processing | Food & Beverage | Medical | Pharmaceuticals | Body Material | Stainless Steel 316L |
| Seal Material | FKM | Specifications Met | RG: 1935/2004/EC | RG : 1907/2006 (REACH) | USDA NSF H1: Grease | RG: 21CFR (FDA) | UL94 V-0: Seal | DI: 94/9/EC (ATEX) | DI : 2002/95/EC (RoHS) | DI: 97/23/EC (PED) | 2011/65/EC | ISO 14743 Pneumatic transmissions |
| Maximum Operating Pressure | 30 bar | 290 to 435 | 30.0 | 435 psi | Vacuum Pressure Rating | 1 bar | 755 mm-Hg | 14.5 psi |
| Shape | Straight | Connection 1 Size | 4 mm (O.D.) |
| Hex Size | 10 mm | Connection 2 Size | M5x0.8 |
| Product Style | Plug-in fittings | Technology | Fluid & Gas Handling | Pneumatics |
| Minimum Operating Temperature | -13 °F | -25 °C | Maximum Operating Temperature | 150 °C | 302 °F |
| Connection 2 Type | Male Metric | For Fluid Type | Other Fluids upon request | Water | Air |
| Connection 1 Type | O.D. | Connection Type | Tube Stem to Port |
| Weight | 0.004 kg |
