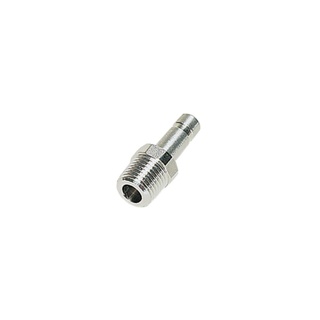

Standpipe s/s 10mmx1/4 NPT Stainless Steel for Secure Plumbing Connections
$138.53
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The standpipe s/s 10mmx1/4 “NPT is a durable and reliable component used in various plumbing and industrial applications. Made of high-quality stainless steel, this standpipe is designed to provide a secure and leak-free connection between pipes or hoses with a 10mm diameter and a 1/4” NPT fitting. Its robust construction ensures longevity and resistance to corrosion, making it ideal for both indoor and outdoor use.
This standpipe offers easy installation and a tight seal, reducing the risk of leaks or failures in the plumbing system. Its versatile design allows it to be used in a wide range of settings, including residential, commercial, and industrial environments. Whether you are looking to upgrade your existing plumbing system or work on a new installation project, the standpipe s/s 10mmx1/4 “NPT is a reliable choice that will meet your needs with efficiency and durability.
Additional information
Product Specifications
| Part Number | 3821 10 14 | Brand | Parker |
| Product Type | Push-to-Connect Fittings | Product Series | LF 3800 |
| Quantity per Box | 2 | Configuration | Tube Stem to Port |
| Materials of Construction | Collet: Stainless Steel 316L | Nut: Stainless Steel 316L | Division | Low Pressure Connectors Europe Division |
| Industry | Chemicals Processing | Food & Beverage | Medical | Pharmaceuticals | Body Material | Stainless Steel 316L |
| Seal Material | FKM | Specifications Met | RG: 1935/2004/EC | RG : 1907/2006 (REACH) | USDA NSF H1: Grease | RG: 21CFR (FDA) | UL94 V-0: Seal | DI: 94/9/EC (ATEX) | DI : 2002/95/EC (RoHS) | DI: 97/23/EC (PED) | 2011/65/EC | ISO 14743 Pneumatic transmissions |
| Maximum Operating Pressure | 30 bar | 30.0 | 290 to 435 | 435 psi | Vacuum Pressure Rating | 1 bar | 755 mm-Hg | 14.5 psi |
| Shape | Straight | Connection 1 Size | 10 mm (O.D.) |
| Hex Size | 19 mm | Connection 2 Size | 1/4″ | 1/4 inch (O.D.) |
| Product Style | Plug-in Fittings | Technology | Fluid & Gas Handling | Pneumatics |
| Minimum Operating Temperature | -13 °F | -25 °C | Maximum Operating Temperature | 150 °C | 302 °F |
| Connection 2 Type | Male NPT | For Fluid Type | Other Fluids upon request | Air | Water |
| Connection 1 Type | O.D. | Connection Type | Tube Stem to Port |
| Weight | 0.017 kg |
