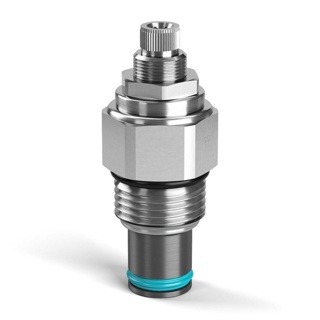

RDH101S50 PTC Pressure GREAT Valve 7-345 bar
$280.46
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Parker RDH101S50 PTC Pressure Relief Valve is a robust and reliable solution designed for continuous duty applications in North America. It can handle pressures up to 420 bar (6000 psi) and flows up to 200 lpm (53 gpm), making it perfect for a wide range of industrial uses.
Additional information
Product Specifications
| Part Number | RDH101S50 | Brand | Parker |
| Configuration | Pressure Relief | Division | Hydraulic Cartridge Systems Division |
| Function | Direct Acting | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Maximum Tank Pressure | 350 bar | 5000 psi | Standard Setting Pressure | 172.4 bar | 2500 psi |
| Reseat Pressure | 90% of pressure setting | Maximum Operating Pressure | 380 bar | 5500 psi |
| Pressure Control Range | 13.8-350 bar | 200-5000 PSI, 13.8-350 BAR | 200-5000 psi | Flow Rate | 0.5 GAL/MIN, 1.9 L/MIN | 0.5 Gal/min | 1.9 L/min |
| Maximum Flow Rate | 0.5 Gal/min | 1.9 L/min | Leak Rate | 0.33 @ 75% Crack Pressure cm3/min | 5 @ 75% Crack Pressure drops/min |
| Maximum Inlet Pressure Rating | 380 bar | 5500 PSI, 380 BAR | 5500 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Pressure Control Sensitivity | 131.7 per turn bar | 1910 per turn psi | Maximum Pressure Setting | 350 bar | 5000 psi |
| Cavity Size | C10-2 | Minimum Operating Temperature | -35 °F | -37 °C |
| Operating Temperature | -35 to +200 °F | -37 to +93 °C | Maximum Operating Temperature | +93 °C | +200 °F |
| Installation Torque | 37-41 lb-ft | 50-56 Nm | Actuation Type | Pressure Sensing |
| Mounting Type | Screw in cartridge valve | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Operation Type | Automatic | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.18 kg | 0.4 lb |
