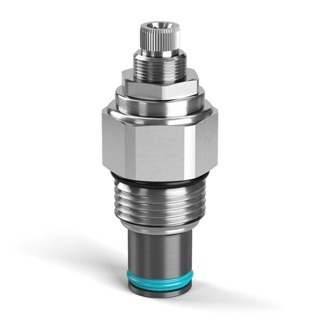

RDH101S30 PTC Pressure Guard 13.8-207 Bar
$280.47
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Parker RDH101S30 PTC Pressure Guard is a high-performance relief valve designed for continuous duty applications with pressures up to 420 bar and flows up to 200 lpm. It is specifically designed for North American markets.
Additional information
Product Specifications
| Part Number | RDH101S30 | Brand | Parker |
| Configuration | Pressure Relief | Division | Hydraulic Cartridge Systems Division |
| Function | Direct Acting | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Standard Setting Pressure | 103.4 bar | 1500 psi | Reseat Pressure | 90% of pressure setting |
| Maximum Tank Pressure | 350 bar | 5000 psi | Maximum Operating Pressure | 380 bar | 5500 psi |
| Pressure Control Range | 200-3000 PSI, 13.8-210 BAR | 13.8-210 bar | 200-3000 psi | Flow Rate | 0.5 GAL/MIN, 1.9 L/MIN | 0.5 Gal/min | 1.9 L/min |
| Leak Rate | 0.33 @ 75% Crack Pressure cm3/min | 5 @ 75% Crack Pressure drops/min | Maximum Flow Rate | 0.5 Gal/min | 1.9 L/min |
| Maximum Inlet Pressure Rating | 380 bar | 5500 PSI, 380 BAR | 5500 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Pressure Control Sensitivity | 58.9 per turn bar | 859 per turn psi | Maximum Pressure Setting | 210 bar | 3000 psi |
| Cavity Size | C10-2 | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Minimum Operating Temperature | -35 °F | -37 °C |
| Installation Torque | 37-41 lb-ft | 50-56 Nm | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Mounting Type | Screw in cartridge valve | Actuation Type | Pressure Sensing |
| Operation Type | Automatic | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.18 kg | 0.4 lb |
