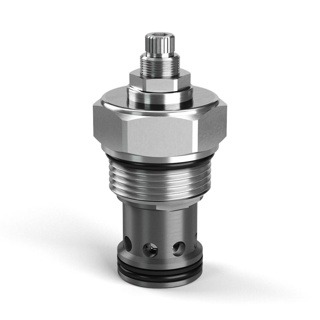

RAH161S30 PTC Pressure GREP Valve20-207 Bar
$553.94
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Parker’s RAH161S30 PTC Pressure Relief Valve is designed for continuous duty applications in North America. It offers excellent stability with low pressure drop, working effectively with pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).
Additional information
Product Specifications
| Part Number | RAH161S30 | Brand | Parker |
| Configuration | Pressure Relief | Division | Hydraulic Cartridge Systems Division |
| Function | Pilot Operated | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Standard Setting Pressure | 103.5 bar | 1500 psi | Maximum Tank Pressure | 350 bar | 5000 psi |
| Maximum Operating Pressure | 350 bar | 5000 psi | Reseat Pressure | 90% of pressure setting |
| Pressure Control Range | 20.7-210 bar | 300-3000 PSI, 20.7-210 BAR | 300-3000 psi | Flow Rate | 80 Gal/min | 80 GAL/MIN, 302.8 L/MIN | 302.8 L/min |
| Maximum Flow Rate | 80 Gal/min | 302.8 L/min | Leak Rate | 5 per @ 100 psi (6.8 bar) setting cm3/min |
| Maximum Inlet Pressure Rating | 380 bar | 5500 PSI, 380 BAR | 5500 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Pressure Control Sensitivity | 58.9 per turn bar | 859 per turn psi | Maximum Pressure Setting | 210 bar | 3000 psi |
| Cavity Size | C16-2 | Minimum Operating Temperature | -34 °C | -30 °F |
| Maximum Operating Temperature | +250 °F | +121 °C | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Installation Torque | 121-125 lb-ft | 164-170 Nm | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Mounting Type | Screw in cartridge valve | Actuation Type | Pressure Sensing |
| Operation Type | Automatic | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.34 kg | 0.75 lb |
