Product Description

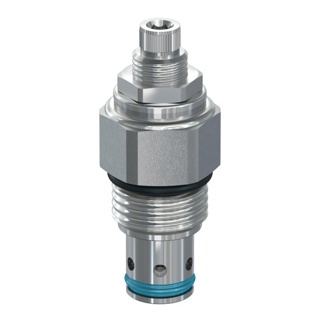

Parker’s RAH101S50 Pressure GR.Ventil offers reliable and efficient regulation of continuous-duty applications. With exceptional stability and low-pressure drop, this pilot-operated relief valve is capable of handling pressures up to 420 bar (6000 psi) and flows up to 400 lpm (106 gpm).

Additional information

Product Specifications

Part Number RAH101S50 Brand Parker
Configuration Pressure Relief Division Hydraulic Cartridge Systems Division
Function Pilot Operated Seal Material D-Ring (Standard)
Valve Material All parts steel. All operating parts hardened steel Adjustment Mechanism Screw
Maximum Tank Pressure 350 bar | 5000 psi Maximum Operating Pressure 350 bar | 5000 psi
Standard Setting Pressure 172.4 bar | 2500 psi Reseat Pressure 90% of pressure setting
Pressure Control Range 13.8-350 bar | 200-5000 PSI, 13.8-350 BAR | 200-5000 psi Flow Rate 30 GAL/MIN, 113 L/MIN | 30 Gal/min | 113 L/min
Maximum Flow Rate 30 Gal/min | 113 L/min Leak Rate 5 per @ 100 psi (6.8 bar) setting cm3/min
Maximum Inlet Pressure Rating 350 bar | 5000 PSI, 350 BAR | 5000 psi Filter Efficiency Rating ISO 4406 18/16/13, SAE Class 4
Pressure Control Sensitivity 131.7 per turn bar | 1910 per turn psi Maximum Pressure Setting 350 bar | 5000 psi
Cavity Size C10-2 Operating Temperature -35 to +200 °F | -37 to +93 °C
Maximum Operating Temperature +93 °C | +200 °F Minimum Operating Temperature -35 °F | -37 °C
Installation Torque 51-55 lb-ft | 69-75 Nm Actuation Type Pressure Sensing
Mounting Type Screw in cartridge valve For Fluid Type Mineral-based or synthetic hydraulic fluids
Operation Type Automatic Maximum Kinematic Viscosity 45-2000 SSU (6 to 420 cSt)
Weight 0.23 kg | 0.5 lb
