Product Description

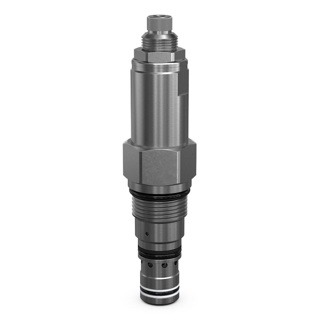

Parker’s PTL balance valve is designed to operate independently of downstream pressure to prevent runaway loads under dynamic conditions. With a pilot signal, it can handle pressures up to 420 bar (6000 psi) and flows up to 350 lpm (90 gpm).

Additional information

Product Specifications

Part Number CB101CS20 Brand Parker
Flow Direction Cylinder port 1, Valve port 2, Pilot port 3 Division Hydraulic Cartridge Systems Division
Function Counterbalance Valve Pilot Location External
Seal Material Nitrile Valve Material All parts steel. All operating parts hardened steel
Adjustment Mechanism Screw Adjustment | Screw Holding Pressure 138 bar | 2000 PSI, 138 BAR | 140 bar | 2000 psi
Maximum Operating Pressure 350 bar | 5000 psi Pressure Control Range 1000-2500 PSI, 69-172.4 BAR | 69-172.4 bar | 1000-2500 psi
Maximum Flow Rate 12 GAL/MIN, 45 L/MIN | 12 Gal/min | 45 L/min Flow Rate 12 Gal/min | 45 L/min
Leak Rate 5 @ 80% of setting drops/min Filter Efficiency Rating ISO 4406 18/16/13, SAE Class 4 | ISO 4406:1999 Code 18/16/13
Maximum Inlet Pressure Rating 380 bar | 5500 psi Pilot Pressure Ratio 7:1 | 7:01
Pressure Control Sensitivity 10.5 per turn bar | 153 per turn psi Cavity Size C10-3
Minimum Operating Temperature -34 °C | -30 °F Maximum Operating Temperature +250 °F | +121 °C
Operating Temperature -30° to +250° °F | -34 to +121 °C | -30 to +250 °F | -34° to +121° °C Installation Torque 16 lb-ft | 22 Nm
Mounting Type Threaded Cartridge Valve For Fluid Type Mineral-based or synthetic hydraulic fluids
Actuation Type Pilot Operated Maximum Kinematic Viscosity Mineral-based or synthetic with lubricating properties at viscosities of 45-2000 SSU (6 to 420 cSt) cSt | 45-2000 SSU (6 to 420 cSt)
Weight 0.23 kg | 0.5 lb
