PTC Print/Red. Valve 7-207bar
$309.59
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

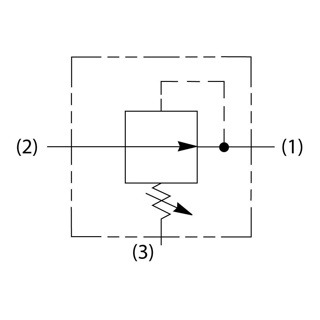

Parker’s PTC Print/Red Valve is a pilot-operated pressure reducing valve designed for North American use. It can handle flows up to 150 lpm (40 gpm) and regulate pressures up to 350 bar (5000 psi). These valves are frequently used to adjust the pressure of a sub-circuit in a hydraulic system.
Additional information
Product Specifications
| Part Number | PRH082S30 | Brand | Parker |
| Configuration | Pressure Reducing | Division | Hydraulic Cartridge Systems Division |
| Function | Pilot Operated | Seal Material | D-ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel. | Adjustment Mechanism | Screw |
| Standard Setting Pressure | 103.5 bar | 1500 psi | Maximum Operating Pressure | 350 bar | 5000 psi |
| Maximum Tank Pressure | 350 bar | 5000 psi | Pressure Control Range | 200-3000 PSI, 13.8-210 BAR | 13.8-210 bar | 200-3000 psi |
| Flow Rate | 8 Gal/min | 8 GAL/MIN, 30 L/MIN | 30 L/min | Maximum Drain Flow Rate | 0.15 Gal/min | 0.56 L/min |
| Maximum Flow Rate | 8 Gal/min | 30 L/min | Maximum Inlet Pressure Rating | 380 bar | 5500 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Pressure Control Sensitivity | 64.9 per turn bar | 942 per turn psi |
| Maximum Pressure Setting | 210 bar | 3000 psi | Cavity Size | C08-3 |
| Maximum Operating Temperature | +93 °C | +200 °F | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Minimum Operating Temperature | -35 °F | -37 °C | Installation Torque | 32-36 lb-ft | 43-49 Nm |
| Mounting Type | Screw in cartridge valve | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Actuation Type | Pressure Sensing | Operation Type | Automatic |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Weight | 0.11 kg | 0.25 lb |
