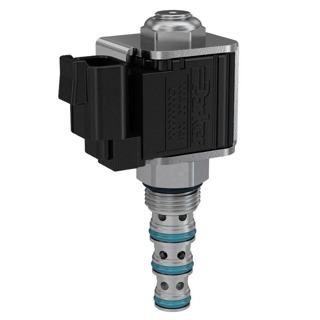

PTC 4/2 valve
$689.43
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Parker’s 4/2 valve N.America Only is a direct acting solenoid that provides a simple electronic solution for actuation or reversing applications. It offers flows up to 113 lpm (30 gpm) and pressures up to 350 bar (5000 psi).
Additional information
Product Specifications
| Part Number | DSL084N | Brand | Parker |
| Flow Direction | All ports blocked De-Energized, 3-2, 4-1 Energized | Division | Hydraulic Cartridge Systems Division |
| Function | 4-way | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 250 bar | 3600 psi |
| Flow Rate | 3 GAL/MIN, 11 L/MIN | 3 Gal/min | 11 L/min | Leak Rate | 160 @ 3600 PSI (250 BAR) cm3/min |
| Maximum Flow Rate | 3 Gal/min | 11 L/min | Maximum Inlet Pressure Rating | 250 bar | 3600 PSI, 250 BAR | 3600 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C08-4 |
| Maximum Operating Temperature | +93 °C | +200 °F | Minimum Operating Temperature | -35 °F | -37 °C |
| Operating Temperature | -35 to +200 °F | -37 to +93 °C | Response Time | 50 ms |
| Installation Torque | 23-27 lb-ft | 31-37 Nm | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Actuation Type | Electrical | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Mounting Type | Screw in cartridge valve | Operation Type | Solenoid operated |
| Coil Type | 1/2″ Super Coil | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.13 kg | 0.29 lb |
