PTC-3/2 PROP.
$500.03
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

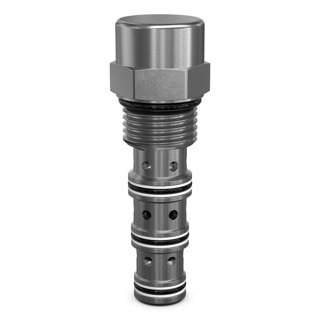

The PTC-3/2 PROP. N.America Only is a versatile 3-way pilot-operated cartridge spool valve designed for use in normally closed or normally open directional control circuits that require remote pilot actuation. Perfect for North American applications.
Additional information
Product Specifications
| Part Number | DH103A | Brand | Parker |
| Configuration | Normally Open | Flow Direction | 2-3 Neutral, 3-4 Piloted |
| Division | Hydraulic Cartridge Systems Division | Function | Directional Control |
| Pilot Location | External | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Drain Option | Vent to Atmosphere |
| Switching Pressure | 5.5 bar | 80 PSI, 5.5 BAR | 80 psi | Maximum Operating Pressure | 240 bar | 3500 psi |
| Flow Rate | 10 Gal/min | 10 GAL/MIN, 38 L/MIN | 38 L/min | Maximum Flow Rate | 10 Gal/min | 38 L/min |
| Leak Rate | 50 @ 3500 PSI (240 BAR) cm3/min | Maximum Inlet Pressure Rating | 240 bar | 3500 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C10-4 |
| Maximum Operating Temperature | +250 °F | +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Installation Torque | 16 lb-ft | 22 Nm |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Actuation Type | Pilot to shift |
| Operation Type | Pilot operated | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.23 kg | 0.5 lb |
