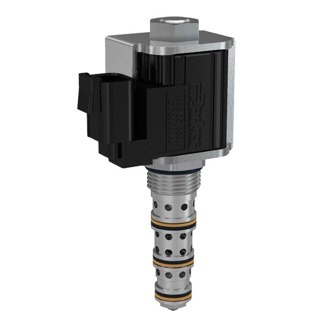

Prop.priority Flow Control
$1,432.67
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Choose from Parker’s Prop.priority Flow Control 3-way proportional valves for precise flow control. These valves, when paired with Current Controlled Pulse Width Modulation (PWM) valve drivers, can handle flow rates of up to 75 lpm (20 gpm) and pressures of up to 210 bar (3000 psi).
Additional information
Product Specifications
| Part Number | JP04C3100N | Brand | Parker |
| Flow Rate Accuracy | +/- 50% of Input Signal | Configuration | Normally Closed, Pressure Compensated |
| Power Consumption | 18, 28 W | Current | 1.50 @ 12 VDC, 2.33 @ 12 VDC, 0.75 @ 24 VDC, 1.17 @ 24 VDC A |
| Minimum Pressure Differential | 13.8, 20.7 bar | 200, 300 psi | Flow Direction | Inlet port 3, Bypass port 2, Regulated port 4 |
| Division | Hydraulic Cartridge Systems Division | Frequency | 100-400 Hz |
| Function | Proportional Flow Control/Regulator | Hysteresis | 7% |
| Seal Material | Nitrile | Valve Material | All parts steel. All operating parts hardened steel |
| Variation of Opening Point | 17% Nominal Amperage, 21% Nominal Amperage | Maximum Operating Pressure | 210 bar | 3000 psi |
| Flow Rate | 16 GAL/MIN, 60 L/MIN | 16 Gal/min | 60 L/min | Leak Rate | 780 @ 3000 PSI (210 BAR) cm3/min |
| Maximum Flow Rate | 16 Gal/min | 60 L/min | Maximum Regulated Flow Rate | 7, 8 Gal/min | 26, 30 L/min |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Maximum Inlet Pressure Rating | 210 bar | 3000 psi |
| Cavity Size | 4C | Minimum Operating Temperature | -34 °C | -30 °F |
| Maximum Operating Temperature | +250 °F | +121 °C | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Installation Torque | 22 lb-ft | 30 Nm | Coil Nut Tightening Torque | 3 lb-ft | 4.1 Nm |
| Actuation Type | Electrical, Manual | Electrical | Operation Type | Solenoid operated |
| Coil Type | 5/8″ Super Coil | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Weight | 0.14 kg | 0.31 lb |
