PGB, Manometer Ø100, 160 bar, G1/2 below
PGB, pressure gauge Ø100, 400 bar, G1/2 below

PGB, Manometer Ø100, 250 bar, G1/2 below

$341.00

Contact us for Pricing
Availability: 3 in stock Category:
  • Payment by invoice possible
  • Not currently in stock, contact us for factory lead times
  • Payment by invoice possible
  • In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
  • Del Rey is proud to be the exclusive distributor of iLumiGlo products
  • Del Rey is proud to be the exclusive distributor of Waagene products
  • Payment by invoice possible
  • Low quantities typically kept on hand; please contact us for availability at lead time
  • Authorized MiniBOOSTER distributor & hydraulic excellence partner

Product Description

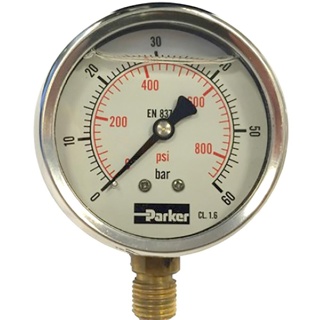

Get precise visual indication of system pressure with the PGB Manometer, featuring a 100 mm diameter and 250 bar pressure capacity. Available with various connection options and pressure ranges up to 600 bar.

Additional information

Product Specifications

Part Number PGB1001250 Brand Parker
Product Type Pressure Gauge Materials of Construction Case: BS 304 S15 Stainless Steel
Window: Acrylic
Movement: Brass
Dial: White Aluminium
Pointer: Black Aluminium
Diameter 100 mm (4 inch) Division Hydraulic & Industrial Process Filtration Division EMEA | Hydraulic and Industrial Process Filtration EMEA
Options Bourdon Tube: Phosphor bronze, helical type Operating Pressure 0-250 bar (0-3625 psi)
Ingress Protection Rating IP 65 Port Size G1/2
Connection Type Bottom
