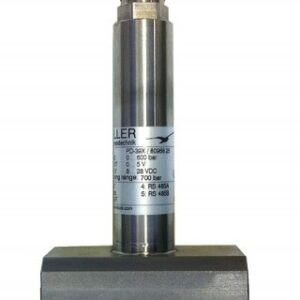

PA33X Subsea Pressure Transmitter
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of iLumiGlo products
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
Subsea pressure transmitters, ranges up to 1360 Bar absolute or sealed gauge (PA33X) or with external case pressure up to 400 bar. Fitted with Sub Con connectors. Suitable for seawater applications. Series 33 units are digitally compensated with a total error band of 0.1% for 0-10V, 0-5V or 4-20mA Output. Also special high precision unit available with RS485 Output with 0.01% accuracy (PA33XX).
Additional information
Specifications
| Pressure Ranges PA33X | 0.8…1360 bar (abs./rel.) |
|---|---|
| Pressure Ranges PD39X | to 600 Bar static, and 600 bar DP |
| Output Signal | RS485 (digital) 4…20mA (2-wire) 0…10V (3-wire) |
| Accuracy, Error Band (10…40 °C) | Typ. 0.05 %FS (digital) Typ. 0.15 %FS (2-wire) Typ. 0.1 %FS (3-wire) |
| Optional: Precision * | Typ. 0.01 %FS (digital) (PA33XX) |
| Long Term Stability | Gauges: 1 mbar or 0.05 %FS Absolute: 0.5 mbar or 0.025 %FS (10…40 °C) |
| Resolution | 0.002 %FS |
| Connector | Subcon MCBH or BH type subsea connector |
| Pin Outs (0-5v Models) | Pin 1 Ground Pin 2 V++ Pin 3 Signal O/P Pin 4 RS485A Pin 5 RS485 |
| Pin Outs (4-20mA Models) | Pin 1 O/P/Ground Pin 2 V++ Pin 4 RS485A Pin 5 RS485 |
Part Builder
| Description | PA33X and PA33XX Subsea Pressure Transmitter |
|---|---|
| Reference | A33 – Sealed Gauge
AA33 – Absolute |
| ATEX | None
EI – ATEX Rated |
| Accuracy | X/8601 – Accuracy RS485 0.1%, 4-20mA 0.1%, 0-10v 0.1% FSD (10-40°C)
X/8601C – Accuracy 0.15% (Oceangraphic temperature calibration -5 to +35°C) XX/8601 – Precision RS485 0.01%, 4-20mA 0.1%, 0-10v 0.1% FSD (10-40°C)0 XX/8601C – Accuracy 0.01% (Oceangraphic temperature calibration -5 to +35°C) |
| Output Option | 06A – 4-20mA output, 2 wire, subcon BH connector, 5 pin M, pin 1 GND/OP, pin 2 V++
06U – 0-5v output, 3 wire, subcon BH connector 5 pin M, pin 1 GND, pin 2 V++, pin 3 O/P 26A – 4-20mA output, 2 wire, subcon MCBH connector, 5 pin M, pin 1 GND/OP, pin 2 V++ 26U – 0-5v output, 3 wire, subcon MCBH connector 5 pin M, pin 1 GND, pin 2 V++, pin 3 O/P 26V – 0-10v output, 3 wire, subcon MCBH connector 5 pin M, pin 1 GND, pin 2 V++, pin 3 O/P +£0.00 |
| Pressure Range | Range 0-1 bar
Range 0-3 bar Range 0-10 bar Range 0-30 bar Range 0-100 bar Range 0-300 bar Range 0-700 bar Range 0-1000 bar Range 0-1360 bar. Inconel Construction |
| Serial Output | None
RS485 serial output required |
| Pressure Connection | B – 1/4″ BSP male thread
N – 1/4″ NPT male thread |
