Product Description

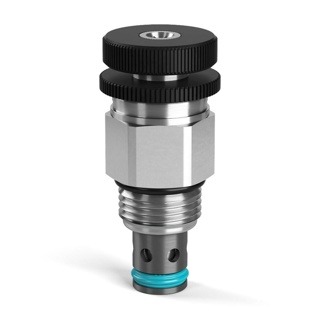

Introducing Nowship N.America’s selection of Parker needle valves, featuring standard options and those with a reverse free-flow check. These non-compensated adjustable orifices can handle flows up to 225 lpm (60 gpm) and pressures up to 420 bar (6000 psi).
Additional information
Product Specifications
| Part Number | NVH081S | Brand | Parker |
| Configuration | Needle | Division | Hydraulic Cartridge Systems Division |
| Function | 2-Way | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Adjustment Mechanism | Screw |
| Maximum Operating Pressure | 380 bar | 5500 psi | Flow Rate | 10 Gal/min | 10 GAL/MIN, 38 L/MIN | 38 L/min |
| Leak Rate | 5 @ 5000 PSI (345 BAR) drops/min | Maximum Flow Rate | 10 Gal/min | 38 L/min |
| Maximum Inlet Pressure Rating | 380 bar | 5500 PSI, 380 BAR | 5500 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C08-2 | Minimum Operating Temperature | -35 °F | -37 °C |
| Operating Temperature | -35 to +200 °F | -37 to +93 °C | Maximum Operating Temperature | +93 °C | +200 °F |
| Installation Torque | 23-27 lb-ft | 31-37 Nm | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Actuation Type | Manual | Operation Type | Manually operated |
| Needle Type | Coarse | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Weight | 0.1 kg | 0.2 lb |
