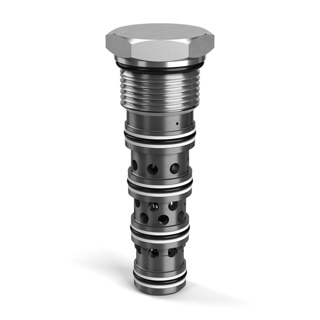

N5A125-6.9N Pilotop. 3/2 valve
$692.58
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Parker’s N5 valves pack a punch with their 3-way 2-position spool-type and versatile pilot-operated cartridge design. Control direction, pressure, or flow with ease. Plus, with a rating of 6000 PSI (420 bar) and flow options up to 105 GPM (400 LPM), the N5 is a reliable and powerful choice.
Additional information
Product Specifications
| Part Number | N5A125-6.9N | Brand | Parker |
| Configuration | Open Transition | Flow Direction | 2-3 Neutral, 3-4 Piloted |
| Division | Hydraulic Cartridge Systems Division, Mobile Systems Division Europe | Function | Diverter |
| Pilot Location | External | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Drain Option | External |
| Switching Pressure | 100 PSI, 6.9 BAR | 6.9 bar | 100 psi | Maximum Operating Pressure | 420 bar | 6000 psi |
| Flow Rate | 42 Gal/min | 42 GAL/MIN, 160 L/MIN | 160 L/min | Maximum Flow Rate | 42 Gal/min | 160 L/min |
| Leak Rate | 275 @ 2900 PSI (200 BAR) cm3/min | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Maximum Inlet Pressure Rating | 420 bar | 6000 psi | Standard Flow Rate Setting | 24 GAL/MIN, 90 L/MIN | 24 Gal/min | 90 L/min |
| Cavity Size | 5A | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Maximum Operating Temperature | +250 °F | +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Installation Torque | 63 lb-ft | 85 Nm | Operation Type | Pilot Operated |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Actuation Type | Switching |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Weight | 0.33 kg | 0.76 lb |
