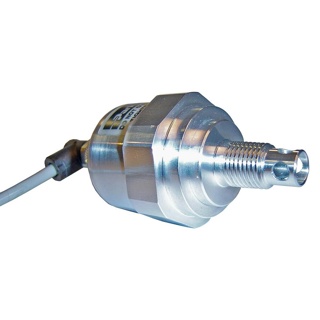

MS200, G1/4 “BSP
$2,457.53
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The iCountMS Range offers an ingenious online moisture sensor, specifically designed for continuous, real-time humidity tracking in hydraulic and lubricating fluid circuits. Available in three distinct models, each capable of withstanding pressures up to an impressive 420 bar. MS200 with a G1/4 “BSP component takes fluid monitoring to another level.
Additional information
Product Specifications
| Part Number | MS2202110 | Brand | Parker |
| Product Type | Condition Monitor | Product Series | iCountMS |
| Accuracy | +/- 5 % | Materials of Construction | Stainless Steel 303 |
| Diameter | 50 mm | Division | Hydraulic & Industrial Process Filtration Division EMEA |
| Height | 50 mm | Industry | Oil and Gas | Power Generation | Mining | Agriculture | Industrial Plant | Construction | Forestry | Marine | Offshore |
| Length | 106 mm | Seal Material | Fluorocarbon | Perfluoroelastomer |
| Body Material | Stainless Steel 303 | Specifications Met | CE Certification |
| Sensing Method | Relative Humidity RH cell % | Options | Programmable |
| Signal Output | 0-5 Vdc | Operating Pressure | 420 bar | 6000 psi |
| Ingress Protection Rating | IP67 | IP68 | Electrical Requirements | 8 to 30 VDC |
| Port Size | 1/4″ | Connection Size | M12X1 – 8 way |
| Product Style | Moisture Sensor | Technology | Filtration | Hydraulics |
| Operating Temperature | -40 to 185 °F | -40 to 85 °C | Minimum Fluid Temperature | -40 °C |
| Maximum Fluid Temperature | 85 °C | Port Type | BSP Bonded Seal |
| Fluid Type | Petroleum, Synthetic Oils | For Fluid Type | Water/Oil emulsions | Petroleum | Synthetic Oils |
| Weight | 300 g | Width | 50 mm |
