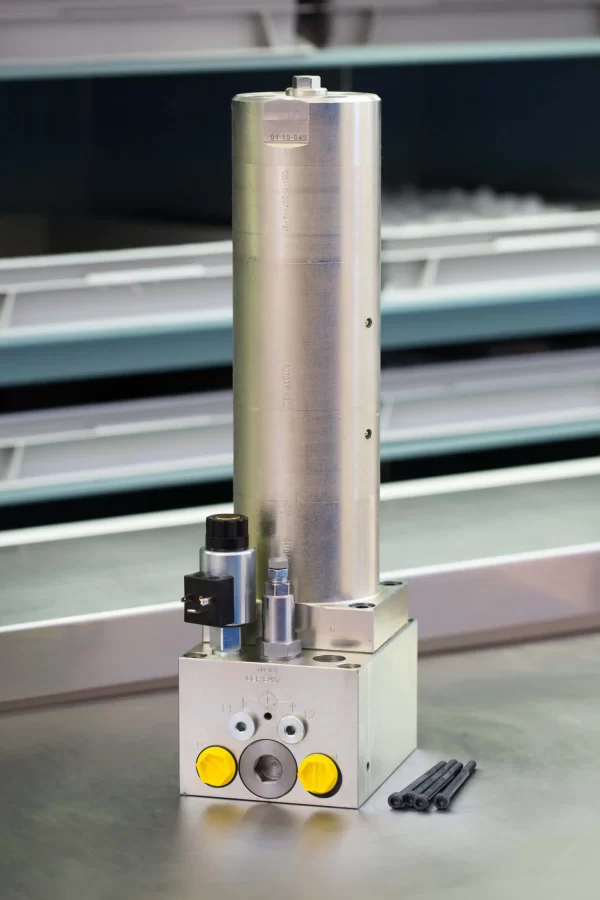

MiniBOOSTER Hydraulic Intensifier M-HC6D-012-6.3-FL200

Category: Tag:

Product Description

The M-HC6D – 012 – 6.3 – FL200 In-line Intensifier System is designed to boost the hydraulic pressure from the pump to the workload. The system operates by solenoid activation. The operator is in full control of the system and can decide if a boosted pressure to the workload should be applied.

The system is dynamical by means of being able to provide flow at high pressure for intermittent use (< 10 min duty cycle).

Typical applications
Mobile attachments; motors – steering systems – cutters – crushers – shears, off highway equipment, injection molding machines and hydraulic presses. Applicable to machines with insufficient pump capacity to prevent machine stoppage when peak pressures occur.

Easy installation
M-HC-012 is provided with four mounting holes for through bolt installation. The four connection ports are placed logically in pairs and in line of each other on the HIC block. All surfaces are electroplated for good protection and fine surface finish.

Additional information

Product Specifications

  • Pressure on demand
  • Solenoid activated
  • High pressure – up to 700 bar (10,000 psi)
  • Max. inlet pressure = 350 bar (5,000 psi)
  • Fast fill – system flows up to 400 l/min
  • Adjustable outlet pressure
  • Extended service life
  • Robust design
  • Flexible design; several boosters/intensification factors

Functions

The function of the system is simple, but smart. The system operates by solenoid activation. The operator is in full control of the system and can decide if a boosted pressure to the workload should be applied.
A relief valve is installed to control the maximum allowable pressure that the system can output, and allowing the booster to go for a higher end pressure producing flow at the decided pressure.

Function Diagram

Function Diagram M-HC6D-012-6.3-FL200

Dimension Drawing

Dimension Drawing M-HC6D-012-6.3-FL200

Connection Types

Connection P / T / Z / H M (P / H / 1), F1 / F2
M-HC2D-01_-1L55 1/2″ BSPP 1/4″ BSPP
M-HC2D-01_-1L100 1/2″ BSPP 1/4″ BSPP
M-HC3-01_-1L55 1/2″ BSPP 1/4″ BSPP
M-HC3-01_-1L100 1/2″ BSPP 1/4″ BSPP
M-HC6D-01_-1L100 1/2″ BSPP 1/4″ BSPP
M-HC6D-01_-1L200 1 1/4″ BSPP 1/4″ BSPP
M-HC6D-01_-1L400 1 1/4″ BSPP 1/4″ BSPP

Flange Mounting

Flange Mounting M-HC6D-012-6.3-FL200

Ordering an M-HC-012

Ordering example of an M-HC-012 for 700 bar, connection tube BSPP with HC3 i = 6.3, static use:

M-HC6-012-FL200 mounted with HC6 – 6.3- A – D

Guidance to calculate the intensification factor for dynamic or static use is at the bottom of this section.

Attention notes!

Valve pre-settings are required, please specify when ordering the intensifier system.

M-HC-012 is as standard mounted with 12VDC coil. Other voltage available on request.

Selection of intensifier system

Ordering code Connection Bypass flow Max. pressure Weight
M-HC2D-012-1L55 Tube 55 l/min 700 bar 12.4 kg
M-HC3-012-1L55 Tube 55 l/min 700 bar 10.8 kg
M-HC2D-012-1L100 Tube 100 l/min 700 bar 12.6 kg
M-HC3-012-1L100 Tube 100 l/min 700 bar 11.0 kg
M-HC6D-012-1L100 Tube 100 l/min 700 bar 33.0 kg
M-HC6D-012-1L200 Tube 200 l/min 700 bar 44.0 kg
M-HC6D-012-1L400 Tube 400 l/min 700 bar 47.0 kg
M-HC2D-012-FK100 Flange 100 l/min 500 bar 10.5 kg
M-HC3-012-FK100 Flange 100 l/min 500 bar 10.8 kg
M-HC3-012-FL55 Flange 55 l/min 700 bar 10.8 kg
M-HC2D-012-FL100 Flange 100 l/min 700 bar 11.5 kg
M-HC3-012-FL100 Flange 100 l/min 700 bar 9.8 kg
M-HC6D-012-FL100 Flange 100 l/min 700 bar 30.0 kg
M-HC6D-012-FL200 Flange 200 l/min 700 bar 40.0 kg
M-HC6D-012-FL400 Flange 400 l/min 700 bar 43.0 kg

Selection of intensification factor

HC2D-_._-A-D HC3-_._-A-D HC6D-_._-A-D
1.6 1.5 1.5
1.9 2.0 2.0
2.2 2.8 2.5
2.6 3.2 3.3
3.2 4.0 4.0
4.0 5.0 4.9
5.0 6.6 6.3
6.6 9.0 8.2

The intensification factor depends on available inlet and desired outlet pressure. To calculate the initial factor, use the following formular:

i = Desired high pressure / pump pressure

Desired pressure: 550 bar
Pump pressure: 207 bar
i = 550 / 207 = 2.7

For static use: Select an intensification factor higher or equal to the calculated value. In this example calculated i = 2.7, select factor i = 2.8 for an HC3 booster. The desired pressure of 550 bar is finally adjusted with the Pressure Reducing Valve (5).

For dynamic use: Select an intensification factor 40% higher than the calculated value. In this example calculated i = 550 / 207 = 2.66 + 40% = 3.7, select factor i = 4.0 for an HC3 booster. The desired pressure of 550 bar is finally adjusted with the Relief Valve (6).

Max. tightening torque

P / T / Z H/Z
1/2″ BSPP 1/2″ BSPP
with steel washer 13.0 da/Nm 13.0 da/Nm
with cutting edge 13.0 da/Nm 13.0 da/Nm
