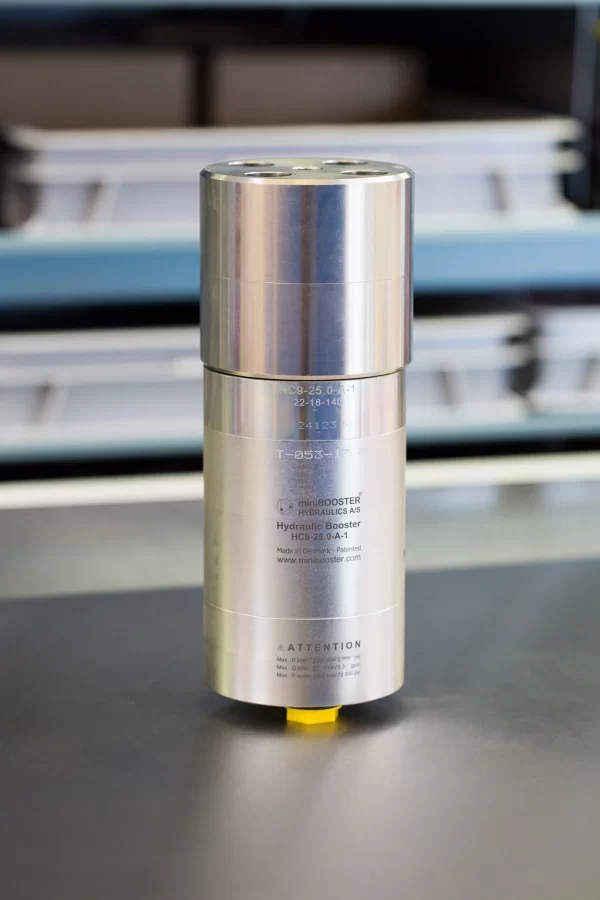

MiniBOOSTER Hydraulic Intensifier HC9-6.2-A
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of iLumiGlo products
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description
The HC9 – 6.2 – A is a compact, ultra-high-pressure unit capable of delivering up to 5,000 bar and 0.4 l/min flow at the high-pressure end. Similar to other miniBOOSTER models, it elevates supplied pressure to a higher outlet pressure and autonomously adjusts for oil consumption to sustain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Despite its high flow capacity, the HC9 remains lightweight, weighing only 9.9 kg.
Additional information
Product Specifications
- HC9 version: 8 intensification factor
- PIN: 20 – 207 bar
- PH: 5,000 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 9.9 kg
Model Versions:
- A model = no dump valve
- B model = with dump valve, up to 3,000 bar
Material certificate 3.1 on request
Flow Rate
| Intensification factor | Max. intensified outlet flow (l/min) | Max. inlet flow (l/min) |
|---|---|---|
| 6.2 | 1.7 | 20.0 |
| 8.2 | 1.3 | 20.0 |
| 9.5 | 1.1 | 20.0 |
| 11.0 | 1.0 | 20.0 |
| 13.0 | 0.8 | 20.0 |
| 16.0 | 0.7 | 20.0 |
| 20.0 | 0.5 | 20.0 |
| 25.0 | 0.4 | 20.0 |
Functions Description
The operation of the device is depicted in a function diagram. Initially, oil flows through directional valve CV to the IN port, passing through check valves KV1 and KV2 to the high-pressure side H, achieving maximum flow and fast-forward function. As pump pressure is attained on the high-pressure side, KV1 and KV2 close. The oscillating pump unit OP maintains end pressure, automatically stalling when reached. If pressure drops due to consumption or leakage, the OP valve compensates to sustain end pressure.
Function Diagram
Dimensions
Connection Types
| Connection | IN / R |
|---|---|
| 1 | 1/2″ BSPP |
High-pressure Adapters
Ordering an HC7
Ordering example of an HC9 with i = 25.0, without DV and BSPP connections, mounted with high-pressure plate with HP-connection 1/4″ BSPP, PG-connection 9/16-18 UNF:
HC9 – 25.0 – A – 1 with 8-285
Attention note!
High-pressure plate is required, please specify ordering code – see high-pressure plate table.
High-pressure plate will be factory mounted.
Model
- HC9
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV, up to 3000 bar
Connections.
- Your selection
- 1 = BSPP
Max. Tightening Torque BSPP
| IN / R | |
| 1/2″ BSPP | |
| with steel washer | 13.0 da/Nm |
| with cutting edge | 13.0 da/Nm |
