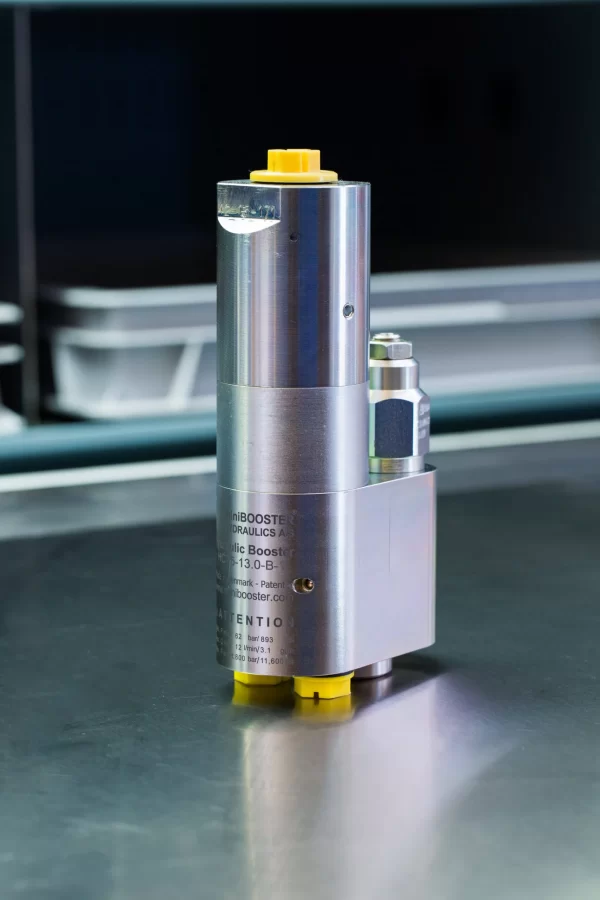

MiniBOOSTER Hydraulic Intensifier HC75W-16.0-A-13S

Category: Tag:

Product Description

The HC75W – 16.0 – A – 13S is a compact, lightweight stainless steel 316L miniBOOSTER unit, weighing only 2.5 kg/ 5.5 lbs, designed for high-pressure applications. It features a built-in counterbalance valve for rapid cylinder movement and precise pressure control. The booster automatically stalls when reaching the set high-pressure level and compensates for media consumption to maintain pressure. Adjustment of outlet pressure is achieved by regulating the supplied pressure. An optional orifice can be installed to prevent overspeeding.

Additional information

Product specification

  • HC75W versions: 10 different intensification factors.
  • PIN: 20 – 207 bar.
  • PH: 2,000 bar maximum.
  • PRETURN: As low as possible (return pressure to tank).
  • POUTLET: PH = (PIN – PRETURN) x intensification factor.
  • Mounting: Inline tube.
  • Weight: 2.5 kg/ 5.5 lbs.

Model versions

  • A model = no dump valve.
  • B model = with dump valve.

Material certificate 16.0 on request

Flow Rates

Intensification Factor i Max.Intensified Outlet flow i/min Max. Inlet flow i/min
4.0 2.0 14.0
5.0 1.6 14.0
6.6 1.3 13.0
7.6 1.1 13.0
9.0 0.9 13.0
10.3 0.8 12.0
13.0 0.6 12.0
16.0 0.5 12.0
20.0 0.3 12.0
25.0 0.2 12.0

Function description

The basic operation is illustrated in the function diagram. Media is fed through the directional valve (in the customer system) to the IN port, flowing freely through the internal check valves to the high-pressure side H.When pump pressure is reached on the high-pressure side H, the internal check valves will close. The end pressure will be achieved by the oscillating pump unit OP. The unit will automatically stall when the high-pressure side H is reached. If a pressure drop on the high-pressure side exists due to consumption or leakage, the OP valve will automatically operate to maintain the end pressure.

Function diagram

Function diagram HC75W-16.0-A-13S

Dimension

Dimension drawing HC75W-16.0-A-13S

Connection Types

Connection IN/R H1 H2 H3
11 1/4″ BSPP M22 x 1.5
12 1/4″ BSPP M22 x 1.5 9/16-18 UNF
13 1/4″ BSPP M22 x 1.5 9/16-18 UNF 9/16-18 UNF



High-pressure adapters

High-pressure-adapter HC75W-16.0-A-13S

Ordering an HC75W

Ordering example of an HC75W with i = 16.0, H1 M22 x 1.5 and H2 9/16-18 UNF, DV incorporated and BSPP connections:

HC75W – 16.0 – A – 13S for media > 5 cSt (mm2/s) tested in hydraulic oil

Attention note!

High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.

Valve pre-setting is required, please specify when ordering the intensifier.

Model

  • HC75W

Intensification,

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV

Connections

  • Select thread
  • See table below
  • 1_S = BSPP, media > 5 cSt



Ordering code IN/R H1 H2 H3
HC75W-___-__-11 1/4″ BSPP M22 x 1.5
HC75W-___-__-12 1/4″ BSPP M22 x 1.5 9/16-18 UNF
HC75W-___-__-13 1/4″ BSPP M22 x 1.5 9/16-18 UNF 9/16-18 UNF



Max. tightening torque BSPP

IN / R
1/4″ BSPP
with stainless steel washer 4.0 da/Nm
