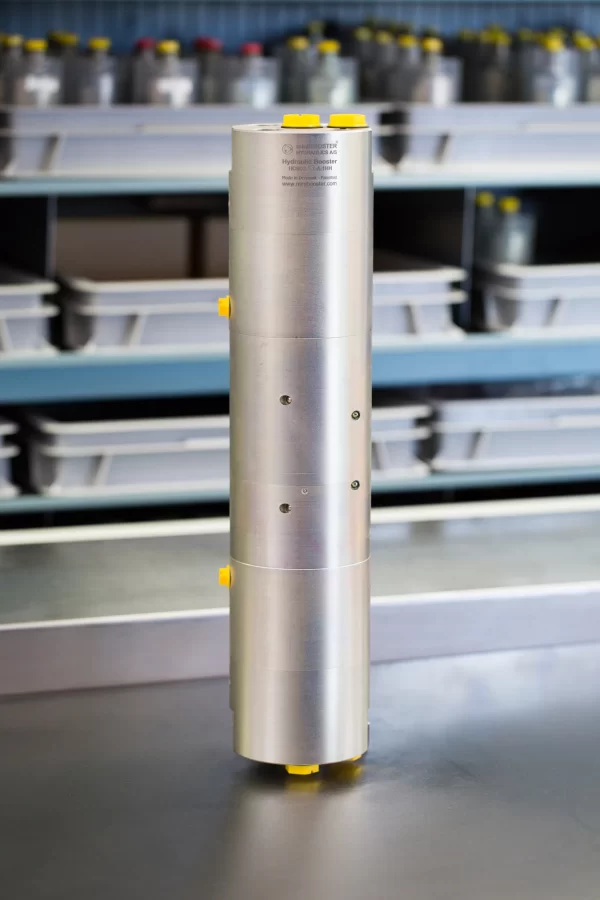

MiniBOOSTER Hydraulic Intensifier HC6D-7.1-A-2

Product Description

The HC6D – 7.1 – A – 2 is a dual media unit designed to deliver a maximum flow of 36.5 l/min at high-pressure output. Similar to other miniBOOSTER models, it elevates supplied pressure to a higher outlet pressure and autonomously adjusts to compensate for oil consumption, ensuring maintenance of high pressure. Adjustment of outlet pressure is achieved by regulating the supplied pressure. Despite its flow capacity, the HC6D2 maintains a compact design, weighing just 24 kg.

Additional information

Product Specifications

HC6D2 versions: 9 different intensification factors
PIN: 20 – 207 bar
PH: 800 bar maximum
PRETURN: As low as possible (return pressure to tank)
POUTLET: PH = (PIN – PRETURN) x intensification factor
Drain connections: Max. 10 bar
Mounting: Inline tube
Weight: 24.0 kg.

Model Versions:

A model = no dump valve

Material certificate 3.1 on request

Flow Rate

Intensification factor (i)	Max. intensified outlet flow (l/min)	Max. inlet flow (l/min)
1.0	36.5	40.0
1.2	32.0	40.0
1.5	28.5	45.0
2.0	22.1	45.0
3.0	12.7	50.0
3.9	11.3	50.0
5.2	8.4	55.0
7.1	6.2	55.0
10.1	4.4	55.0

Functions Description

The system operates as follows: Media 1 enters through the IN port, flowing freely through bistable valve BV1 to drive the LP pistons. Simultaneously, Media 2 is drawn through check valves KV1, then pumped via KV2 to the high-pressure side H. This setup maximizes flow through the booster, enabling a fast-forward function. Automatic stall occurs when the end pressure on side H is reached. Should a pressure drop occur due to consumption or leakage, HP1 and HP2 units activate automatically to maintain end pressure.

Function Diagram

Function Diagram HC6D-7.1-A-2

Dimensions

Function Diagram HC6D-7.1-A-2

Connection Types

Connection	IN / R	H1 / H2	S1 / S2	D1 / D2
1	1/2″ BSPP	1/2″ BSPP	1/2″ BSPP	1/8″ BSPP

Dynamic seals

Code	Seal material media 1 / 2	Outlet pressure
HH	H-PUR / H-PUR	Max 800 bar HP
HP	H-PUR / PEEK	Max 800 bar HP
EP	EPDM / PEEK	Max 800 bar HP
HE	H-PUR / EPDM	Max 500 bar HP
EE	EPDM / EPDM	Max 500 bar HP

Ordering an HC6D2

Ordering example of an HC6D2 with i = 3.9, with BSPP connections and H-PUR dynamic seals:

HC6D2 – 3.9 – A – 1HH

Model

HC6D2

Intensification,i

Select factor
See flow rate table

Model Version.

Select type
A = without DV

Connections.

Select thread
1 = BSPP

Dynamic seals

Select seal type
See dynamic seal table

Max. tightening torque BSPP

	IN / R	H1 / H2	S1 / S2	D1 / D2
	1/2″ BSPP	1/2″ BSPP	1/2″ BSPP	1/8″ BSPP
With steel washer	13.0 da/Nm	13.0 da/Nm	13.0 da/Nm	2.0 da/Nm
With cutting edge	13.0 da/Nm	13.0 da/Nm	13.0 da/Nm	2.0 da/Nm
