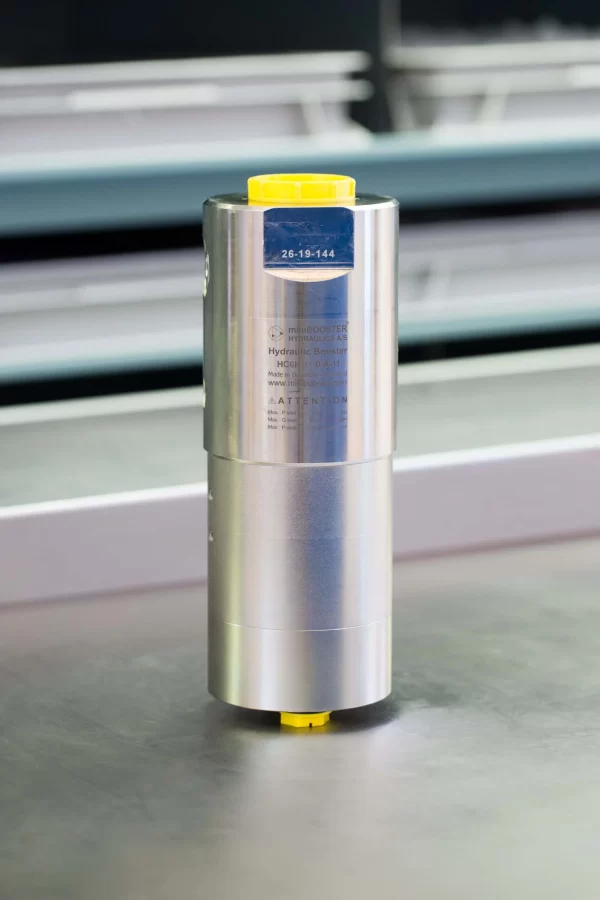

MiniBOOSTER Hydraulic Intensifier HC6-25.0-A-H

Category: Tag:

Product Description

The HC6 – 25.0 – A – H is an ultra-high-pressure unit that can deliver up to 5,000 bar and a flow of 1.7 liters per minute at the high-pressure end. Similar to other miniBOOSTER models, the HC6H boosts supplied pressure to achieve a higher outlet pressure and automatically adjusts for oil consumption to sustain the high pressure. Adjustment of the outlet pressure is achieved by modifying the supplied pressure. Despite its powerful capabilities, the HC6H remains compact, weighing only 11.0 kg.

Additional information

Product Specifications

  • HC6H version: 8 different intensification factors
  • PIN: 20 – 207 bar
  • PH: 5,000 bar maximum
  • PRETURN: As low as possible (return pressure to tank)
  • POUTLET: PH = (PIN – PRETURN) x intensification factor
  • Mounting: Inline tube
  • Weight: 11.0 kg

Model Versions:

  • A model = no dump valve
  • B model = with dump valve, up to 3,000 bar

Material certificate 3.1 on request

Flow Rate

Intensification factor Max. intensified outlet flow (l/min) Max. inlet flow (l/min)
6.3 6.7 80.0
8.2 5.2 80.0
9.5 4.5 80.0
11.0 3.9 80.0
13.0 3.3 80.0
16.0 2.7 80.0
20.0 2.1 80.0
25.0 1.7 80.0

Functions Desctiption

This system operates by directing oil flow through a directional valve to the IN port. The oil flows through check valves to the high-pressure side, enabling maximum flow for fast-forward function. Once pump pressure is reached, the check valves close, and end pressure is maintained by an oscillating pump unit. The unit stops automatically when end pressure is reached and adjusts to counteract pressure drops on the high-pressure side.

Function Diagram

Function Diagram HC6-25.0-A-H

Dimensions

Dimension drawing HC6-25.0-A-H

Connection Types

Connection IN / R H
1 1/2″ BSPP M42 x 1.5

Ordering an HC6H

Ordering example of an HC6H with i = 25.0, H1 M42x1.5 and H2 1 1/8-12 UNF without DV and BSPP connections: HC6H – 25.0 – A – 12

Attention note!

  • High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
  • High-pressure adapters will be factory mounted.

Model

  • HC6H

Intensification,i

  • Select factor
  • See flow rate table

Model Version.

  • Select type
  • A = without DV
  • B = with DV, up to 3000 bar

Connections.

  • See table below
Ordering code IN / R H1 H2
HC6H-___-__-11 1/2″ BSPP M42 x 1.5
HC6H-___-__-12 1/2″ BSPP M42 x 1.5 1 1/8″-12 UNF

Max. Tightening Torque BSPP

IN / R
1/2″ BSPP
with steel washer 13.0 da/Nm
with cutting edge 13.0 da/Nm
