Product Description

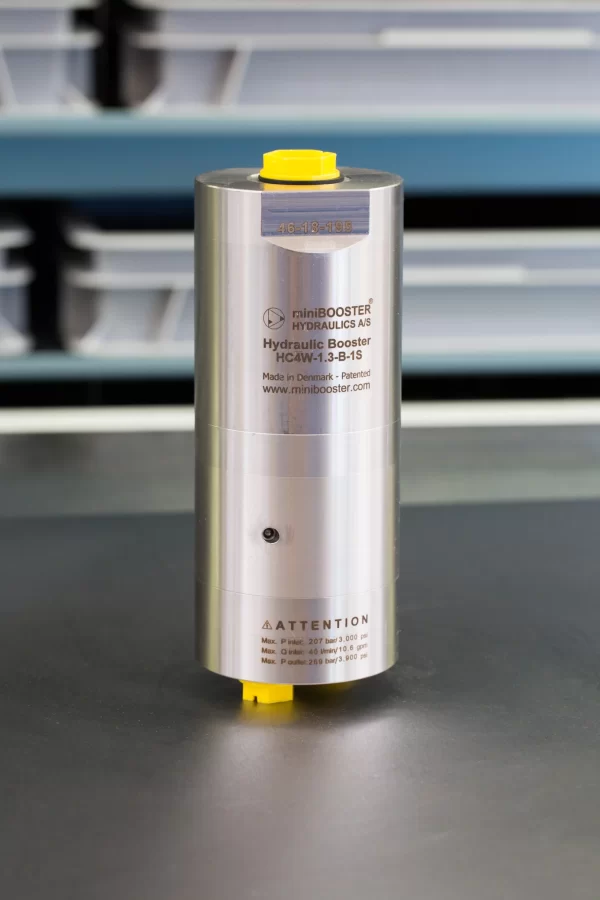

The HC4 – 4.3 – A – W is a compact stainless steel 316L miniBOOSTER unit, weighing just 4.5 kg/9.9 lbs yet capable of delivering up to 7.0 l/min outlet flow. Ideal for applications requiring higher volumes of high-pressure fluid. It raises supplied pressure, compensating for media consumption, and allows outlet pressure adjustment by varying supplied pressure, relative to its flow capacity.
Additional information
Product Specifications
- HC4W versions: 11 different intensification factors
- PIN: 20-207 bar
- PH: 800 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 4.5 kg/9.9 Lbs
Model Versions:
- A model = no dump valve
- B model = with dump valve
- G model = direct proportionally controlled
Material certificate 3.1 on request
Flow Rate
| Intensification Factor | Max. Intensified Outlet Flow (l/min) | Max. Inlet Flow (l/min) |
|---|---|---|
| 1.3 | 16.3 | 40.0 |
| 1.5 | 14.1 | 40.0 |
| 1.8 | 11.8 | 40.0 |
| 2.1 | 10.1 | 40.0 |
| 2.6 | 8.1 | 40.0 |
| 2.8 | 7.6 | 40.0 |
| 3.2 | 6.5 | 40.0 |
| 4.3 | 5.0 | 40.0 |
| 5.1 | 4.1 | 40.0 |
| 6.3 | 3.4 | 40.0 |
| 9.8 | 2.2 | 40.0 |
Functions Desctiption
The system operates by directing water through CV to the IN port, flowing through KV1, KV2, and DV to high-pressure side H, maximizing booster flow. As pump pressure is reached, KV1, KV2, and DV close. OP then achieves end pressure, automatically stalling once reached. OP adjusts for pressure drops, maintaining end pressure.
Function Diagram
Dimensions
Dimensions Diagram HC4-4.3-A-W
Connection Types
| Connection | IN / R | H |
|---|---|---|
| 1 | 3/8″ BSPP | 1/2″ BSPP |
Ordering an HC4W
Ordering examples of an HC4W:
with i = 4.3, DV incorporated with BSPP connections for media < 5 cSt (mm2/s) tested in water: HC4W – 4.3 – B – 1 with i = 4.3, DV incorporated with BSPP connections for media > 5 cSt (mm2/s) tested in oil: HC4W – 4.3 – B – 1S
Attention note!
The G-model is available in 2 variants, when ordering please specify accordingly:
- Dynamic – low hysteresis: Ordering example of an HC4W with i = 4.3 RV incorporated and BSPP connections: HC4W – 4.3 – G – 1
- Fail safe – high hysteresis: The RV valve opening ratio is to be determined on an individual basis. Contact our technical support. Ordering example of an HC4W with i = 4.3 RV with opening ratio x.x incorporated and BSPP connections: HC4W – 4.3 – G – x.x – 1
Model
- HC4W
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
- B = with DV
- G = with proportional valve
Connections.
- Select thread
- 1 = BSPP, media < 5 cSt
- 1S = BSPP, media > 5 cSt
Dynamic seals.
- Select seal type
- See dynamic seal table
Max. Tightening Torque BSPP
| IN / R | H | |
| 3/8″ BSPP | 1/2″ BSPP | |
| with stainless steel washer | 6.0 da/Nm | 13.0 da/Nm |
