MiniBOOSTER Hydraulic Intensifier HC2D2-4.0-A-W
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of iLumiGlo products
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized MiniBOOSTER distributor & hydraulic excellence partner
Product Description

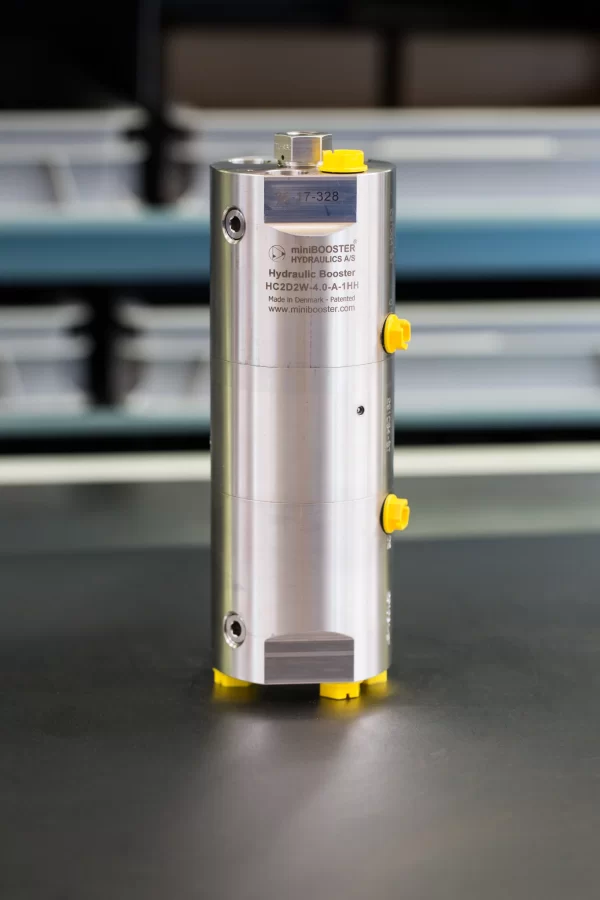

The HC2D2 – 4.0 – A – W is a stainless steel 316L dual media miniBOOSTER, designed to deliver a maximum flow of 4.2 l/min on its high-pressure end. It functions by raising the supplied pressure to a higher outlet pressure and autonomously adjusts for oil consumption to sustain the elevated pressure level. Adjustment of outlet pressure is achieved by modulating the supplied pressure. Despite its high flow capacity, this compact unit weighs just 8.0 kg.
Additional information
Product Specifications
- Versions: 8 different intensification factors
- PIN: 20 – 207 bar
- PH: 800 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Drain connections: Max. 5 bar
- Mounting: Inline tube
- Weight: 8.0 kg
Model Versions:
- A model = no dump valve
Material certificate 3.1 on request
Flow Rate
| Intensification Factor (i) | Max. Intensified Outlet Flow (l/min) | Max. Inlet Flow (l/min) |
|---|---|---|
| 1.2 | 4.2 | 6.0 |
| 1.6 | 3.2 | 6.0 |
| 2.2 | 2.7 | 7.0 |
| 3.0 | 2.1 | 7.0 |
| 4.0 | 1.6 | 7.0 |
| 5.6 | 1.3 | 8.0 |
| 8.0 | 1.0 | 8.0 |
| 12.0 | 0.6 | 8.0 |
Functions Description
The system’s basic operation is depicted in a function diagram. Media 1 is fed through the IN port, flowing freely through the bistable valve BV1 to drive the LP pistons. Simultaneously, Media 2 is drawn from the suction inlet IN, passing through check valves 2 x KV1, and pumped through 2 x KV2 to the high-pressure side H. This configuration achieves maximum booster flow, facilitating a fast-forward function. The unit automatically stalls upon reaching end pressure on the high-pressure side H. HP1 and HP2 units activate automatically to maintain end pressure in case of a pressure drop due to consumption or leakage.
Function Diagram
Dimensions
Dimension Diagram HC2D-4.0-A-2
Connection Types
| Connection | IN / R | H1 / H2 | S1 / S2 | D1 / D2 |
|---|---|---|---|---|
| 1 | 1/4″ BSPP | M22 x 1,5 | 3/8″ BSPP | 1/8″ BSPP |
High Pressure Adapter
Dynamic seals
| Code | Seal Material Media 1 / 2 | Outlet Pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 800 bar HP |
| HP | H-PUR / PEEK | Max 800 bar HP |
| EP | EPDM / PEEK | Max 800 bar HP |
| HE | H-PUR / EPDM | Max 500 bar HP |
| EE | EPDM / EPDM | Max 500 bar HP |
Ordering an HC2D2W
Ordering example of an HC2D2W with i = 4.0, with BSPP connections and H-PUR dynamic seals:
HC2D2 – 4.0 – A – 1HH
Model
- HC2D2W
Intensification,i
- Select factor
- See flow rate table
Model Version.
- Select type
- A = without DV
Connections.
- Select thread
- 1 = BSPP
Dynamic seals
- Select seal type
- See dynamic seal table
Max. tightening torque BSPP
| IN / R | S1 / S2 | D1 / D2 | |
|---|---|---|---|
| 1/4″ BSPP | 3/8″ BSPP | 1/8″ BSPP | |
| With stainless steel washer | 4.0 da/Nm | 6.0 da/Nm | 2.0 da/Nm |
