Product Description

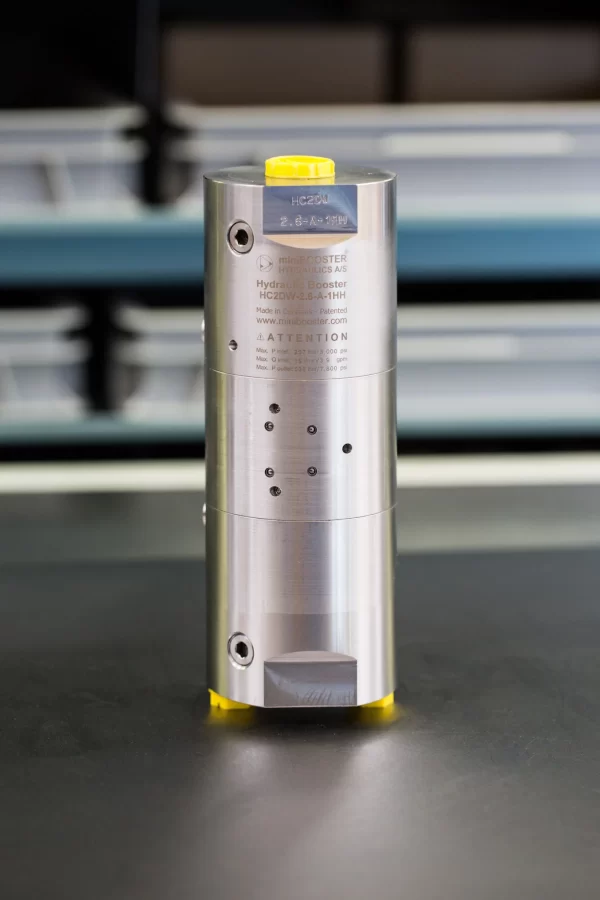

The HC2D – 6.6 – A – W a dual-acting stainless steel 316L miniBOOSTER unit, delivers up to 11.0 l/min flow at the high-pressure end. It elevates supplied pressure to a higher outlet pressure while automatically compensating for oil consumption to sustain high pressure. Outlet pressure adjustment is achieved by varying the supplied pressure. Despite its high flow capability, it remains a compact unit, weighing 8.0 kg.
Additional information
Product Specifications
- HC2W versions: 13 different intensification factors
- PIN: 20-207 bar
- PH: 800 bar maximum
- PRETURN: As low as possible (return pressure to tank)
- POUTLET: PH = (PIN – PRETURN) x intensification factor
- Mounting: Inline tube
- Weight: 8.0 kg
Model Versions:
- A model = no dump valve
- B model = with dump valve
Material certificate 3.1 on request
Flow Rate
| Intensification Factor | Max. Intensified Outlet Flow (l/min) | Max. Inlet Flow (l/min) |
|---|---|---|
| 1.2 | 11.0 | 15.0 |
| 1.4 | 10.6 | 15.0 |
| 1.6 | 10.2 | 15.0 |
| 1.9 | 8.8 | 15.0 |
| 2.2 | 7.8 | 15.0 |
| 2.6 | 7.0 | 15.0 |
| 3.2 | 6.2 | 15.0 |
| 4.0 | 5.0 | 14.0 |
| 5.0 | 4.0 | 14.0 |
| 6.6 | 3.2 | 13.0 |
| 9.0 | 2.2 | 13.0 |
| 13.0 | 1.5 | 12.0 |
| 20.0 | 0.7 | 12.0 |
Functions Desctiption
Oil flows through CV to IN port, via 2x KV1, 2x KV2, and DV to high-pressure side H, ensuring maximum booster flow. When pump pressure is reached, KV1, KV2, and DV close. OP1 and OP2 maintain end pressure alternately. Automatic stall at end pressure; OP1 and OP2 adjust for pressure drops. Optional H connection reversal.
Function Diagram
Dimensions
High Pressure Adapters
High Pressure Adapters HC2D-6.6-A-W
Dynamic seals
| Code | Seal material | Outlet pressure |
|---|---|---|
| HH | H-PUR / H-PUR | Max 800 bar HP |
| EE | EPDM / EPDM | Max 500 bar HP |
Ordering an HC2DW
Ordering examples of an HC2W:
Ordering example of an HC2DW with i = 4.0, DV incorporated, BSPP connections and H-PUR dynamic seals:
HC2DW – 4.0 – B – 1HH for media < 5 cSt (mm2/s) tested in water HC2DW – 4.0 – B – 1SHH for media > 5 cSt (mm2/s) tested in hydraulic oil
Attention note!
High-pressure adapter is required, please specify ordering code – see high-pressure adapter table.
High-pressure adapters will be factory mounted.
Model
- HC2DW
- Select factor
- See flow rate table
- Select type
- A = without DV
- B = with DV
- Select thread
- 1 = BSPP, media < 5 cSt
- 1S = BSPP, media > 5 cSt
- Select seal type
- See dynamic seal table
Max. Tightening Torque BSPP
| IN / R | I1 / I2 | |
| 1/4″ BSPP | 1/8″ BSPP | |
| with stainless steel washer | 4.0 da/Nm | 2.0 da/Nm |
