Product Description

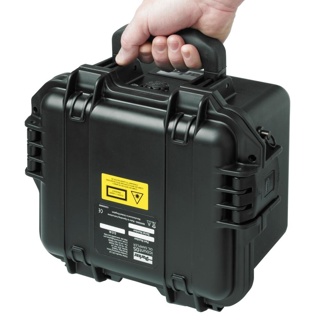

The iCountOS is an extremely durable, portable monitor designed to precisely measure particle contamination in fuels and hydraulic fluids. It seamlessly operates both online, via direct system connection, and offline, through sampling from tanks or reservoirs.
Additional information
Product Specifications
| Part Number | IOS1211EUR | Brand | Parker |
| Product Type | Condition Monitor | Accuracy | +/- 1 ISO code |
| Electrical Connection | EUR | Materials of Construction | Storm Case |
| Division | Hydraulic & Industrial Process Filtration Division EMEA | Height | 195 mm |
| Operating Humidity | 5 to 100% (RH) | Industry | Power Generation & Renewable Energy | Industrial Manufacturing Equipment | Off-Road Machinery |
| Communication Interface | WiFi up to 20 metres | WiFi | Length | 248 mm |
| Seal Material | Fluorocarbon | Body Material | Brass |
| Specifications Met | IP68 | Sensing Method | Laser |
| Signal Output | RS232 | Operating Pressure | 2.5 to 350 bar | 35 to 5000 psi |
| Flow Rate | 60 ml/min | Ingress Protection Rating | IP54 |
| Electrical Requirements | 12V Rechargeable Battery | Inlet Connection Size | 6 mm |
| Outlet Connection Size | 4 mm | Port Size | M16 |
| Connection Style | Offline | Product Style | Particle Detector/Counter |
| Technology | Filtration | Hydraulics | Minimum Ambient Temperature | -40 °C | -40 °F |
| Minimum Fluid Temperature | 5 °C | 41 °F | Maximum Fluid Temperature | 176 °F | 80 °C |
| Maximum Ambient Temperature | 176 °F | 80 °C | Operating Temperature | -22 to 176 °F | -30 to 80 °C |
| Cycle Time | 30 second | Fluid Type | Mineral-based Oils, Petroleum-based Fuel |
| For Fluid Type | Petroleum-based Fuel | Mineral-based Oils | Port Type | Metric |
| Calibration Type | MTD | Maximum Kinematic Viscosity | 300 cSt |
| Weight | 5.5 kg | Width | 299 mm |
