Product Description
This KATO Brushless Synchronous AC Generator is a heavy-duty industrial alternator rated at 1825 kW continuous output. Designed for demanding power generation applications, the unit operates at 3-phase, 60 Hz, and 1,800 RPM, making it suitable for large engine-driven generator sets used in industrial plants, utility substations, and standby or peaking power facilities.
The generator features a wide feet mounting configuration for stable base installation and a double bearing design, providing enhanced mechanical support for coupled prime movers. The brushless excitation system reduces maintenance requirements while improving long-term operational reliability.
Manufactured by KATO Engineering (Reliance Electric), Mankato, Minnesota, this unit is engineered for dependable continuous-duty performance in high-capacity power systems.

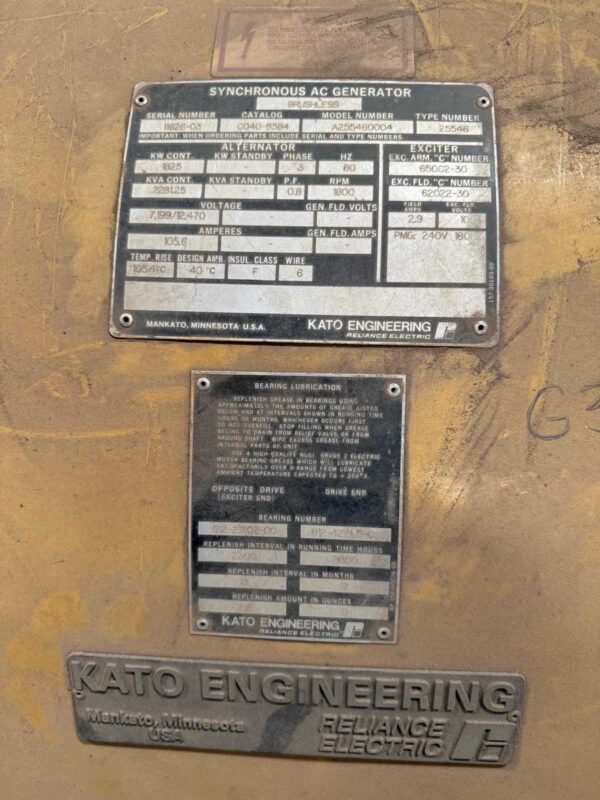

Specifications
| Parameter | Details |
|---|---|
| Equipment Type | Synchronous AC Generator |
| Manufacturer | KATO Engineering |
| Condition | Used / Surplus |
| Rated Power (Continuous) | 1825 kW |
| Phase | 3 Phase |
| Frequency | 60 Hz |
| Speed | 1,800 RPM |
| Voltage | 7199 / 12470 V |
| Current | 105.6 Amps |
| Mounting | Wide Feet |
| Bearing Configuration | Double Bearing |
| Excitation Type | Brushless |
| Model Number | A255460004 |
| Item Number | C040-6584 |
| Serial Number | 11626-03 |
| Power Factor | 0.8 |
| KVA Continuous | 2281.25 kVA |
| Temperature Rise | 105°C |
| Design Ambient | 40°C |
| Insulation Class | F |
| Wire | 6 |
| PMG | 240V / 180 |
