IOS1221EUR, particle counter mtd online, wifi
$15,083.84
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

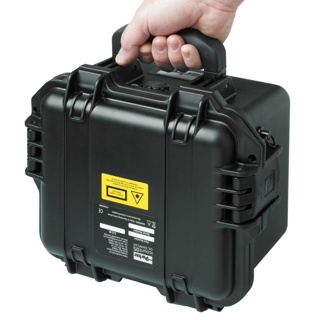

The iCountOS is a robust and portable particle monitor, adept at tracking contamination levels in fuels and hydraulic fluids. This versatile device can function online, directly linked to your system, or offline, drawing samples from tanks or reservoirs. Its Wi-Fi connectivity offers convenience and reliability for your monitoring needs.
Additional information
Product Specifications
| Part Number | IOS1221EUR | Brand | Parker |
| Product Type | Condition Monitor | Accuracy | +/- 1 ISO code |
| Electrical Connection | EUR | Materials of Construction | Storm Case |
| Division | Hydraulic & Industrial Process Filtration Division EMEA | Height | 195 mm |
| Operating Humidity | 5 to 100% (RH) | Industry | Power Generation & Renewable Energy | Industrial Manufacturing Equipment | Off-Road Machinery |
| Communication Interface | WiFi up to 20 metres | WiFi | Length | 248 mm |
| Seal Material | Fluorocarbon | Body Material | Brass |
| Specifications Met | IP68 | Sensing Method | Laser |
| Signal Output | RS232 | Operating Pressure | 2.5 to 350 bar | 35 to 5000 psi |
| Flow Rate | 60 ml/min | Ingress Protection Rating | IP54 |
| Electrical Requirements | 12V Rechargeable Battery | Inlet Connection Size | 6 mm |
| Outlet Connection Size | 4 mm | Port Size | M16 |
| Connection Style | Online | Product Style | Particle Detector/Counter |
| Technology | Filtration | Hydraulics | Minimum Fluid Temperature | 5 °C | 41 °F |
| Maximum Fluid Temperature | 176 °F | 80 °C | Minimum Ambient Temperature | -40 °C | -40 °F |
| Maximum Ambient Temperature | 176 °F | 80 °C | Operating Temperature | -22 to 176 °F | -30 to 80 °C |
| Cycle Time | 30 second | Fluid Type | Mineral-based Oils, Petroleum-based Fuel |
| For Fluid Type | Petroleum-based Fuel | Mineral-based Oils | Calibration Type | MTD |
| Port Type | Metric | Maximum Kinematic Viscosity | 300 cSt |
| Weight | 5.5 kg | Width | 299 mm |
