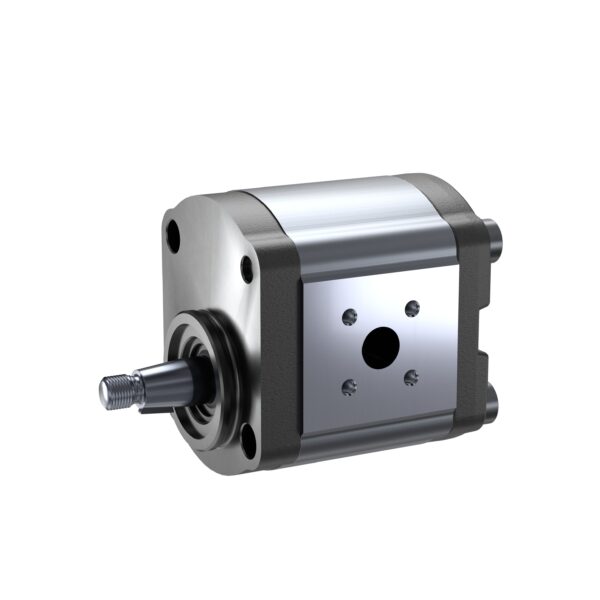

HYDRAULIC GEAR PUMP 0510615333
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The HYDRAULIC GEAR PUMP 0510615333, Model F, designed for a Deutz motor application, delivers a max flow of 47.2 l/min with a 16 cm³/rev displacement. It operates at a maximum rotational speed of 2950 rpm and withstands intermittent pressures up to 280 bar. It features aluminum housing, counter clockwise rotation, and NBR/FKM seals.
Additional information
Specifications
| Max. flow [l/min] | 47.2 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 16 |
| Maximum intermittent pressure [bar] | 280 |
| Maximum rotational speed [rpm] | 2950 |
| Drive shaft | Conical 1:5 |
| Direction of rotation | Counter clockwise rotation |
| Front cover | 2-bolt mounting Dia. 50 mm (K H D) |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| Application | Deutz motor |
| Customer part number | 195635 |
| External gear unit | External Gear Unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter 18mm |
| Version | Phosphatized, pinned |
| Line connection | Square flange to fitting ISO 8434-1 |
| Sealing material | NBR, shaft seal in FKM |
| Rear cover | Standard (cast iron) |
| Special version | Deviations from catalogue standards, see drawing |
| Weight [kg] | 3.15 |
