Product Description

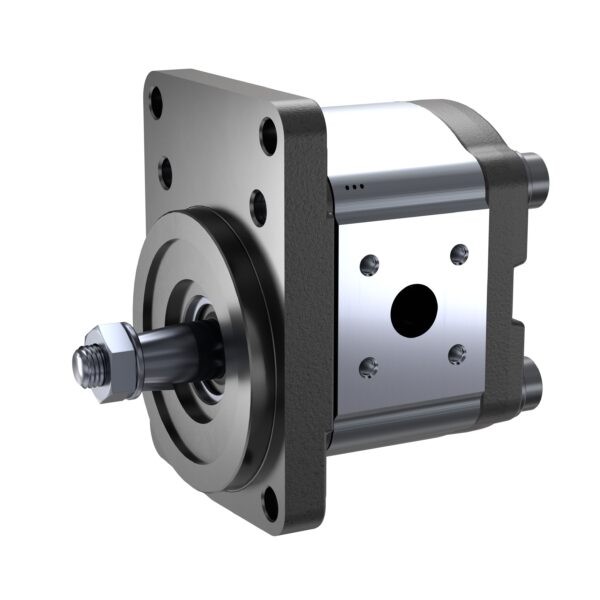

The HYDRAULIC GEAR PUMP 0510425307 features an 8 cm³/rev displacement, max flow of 32 l/min, and operates up to 4000 rpm at 280 bar. It includes an aluminum housing, conical drive shaft, counterclockwise rotation, and NBR seals. It weighs 3.4 kg with a rectangular flange and standard noise level.
Additional information
Specifications
| Max. flow [l/min] | 32.0 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 8 |
| Maximum intermittent pressure [bar] | 280 |
| Maximum rotational speed [rpm] | 4000 |
| Drive shaft | Conical 1:5 |
| Direction of rotation | Counter clockwise rotation |
| Front cover | Rectangular flange Dia. 80 mm |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| Application | General |
| External gear unit | External Gear Unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter 18mm |
| Version | Phosphatized, pinned |
| Line connection | Square flange to fitting ISO 8434-1 |
| Sealing material | NBR |
| Rear cover | Standard (cast iron) |
| Weight [kg] | 3.4 |
