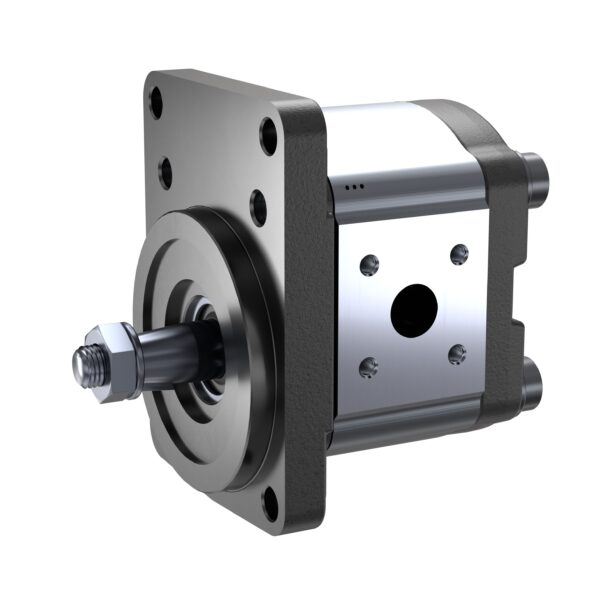

HYDRAULIC GEAR PUMP 0510325306
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The HYDRAULIC GEAR PUMP 0510325306 is a versatile solution for general applications, offering a maximum flow of 22.0 l/min and a geometric displacement of 5.5 cm³/rev. With a maximum intermittent pressure of 280 bar and a rotational speed of up to 4000 rpm, it features a conical 1:5 drive shaft and counter-clockwise rotation. The unit is housed in aluminum with standard noise levels and comes with a rectangular flange front cover (Dia. 80 mm) and a standard rear cover (cast iron). Weighing 3.28 kg, it is designed for reliability and efficiency, with a phosphatized, pinned version and NBR sealing material for optimal performance.
Additional information
Specifications
| Max. flow [l/min] | 22.0 |
|---|---|
| Size (geometric displacement) [cm³/rev] | 5.5 |
| Maximum intermittent pressure [bar] | 280 |
| Maximum rotational speed [rpm] | 4000 |
| Drive shaft | Conical 1:5 |
| Direction of rotation | Counter clockwise rotation |
| Front cover | Rectangular flange Dia. 80 mm |
| Housing material | Aluminum |
| Noise level | Standard noise level |
| Application | general |
| External gear unit | External Gear Unit |
| External gear unit function | Pump |
| Series | Model F (4 … 28 cm³/rev) |
| Unit version | Bearing diameter 18mm |
| Version | phosphatized, pinned |
| Line connection | Square flange to fitting ISO 8434-1 |
| Sealing material | NBR |
| Rear cover | Standard (cast iron) |
| Weight [kg] | 3.28 |
