Product Description

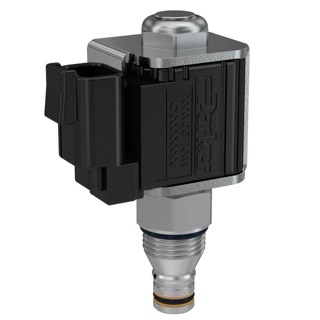

Introducing Parker’s 2-way bi-directional poppet solenoid valves – the efficient solution for blocking flow in both directions with minimal leakage. Specifically designed for North American use, these valves are suitable for pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm). Choose from normally-open or normally-closed configurations to meet your specific needs.

Additional information

Product Specifications

Part Number GS027800N Brand Parker
Configuration Normally Open Flow Direction Bi-directional
Division Hydraulic Cartridge Systems Division Function 2-way
Wire Mesh Screen Included No Seal Material Nitrile
Valve Material All parts steel. All operating parts hardened steel Seat Material Delrin®
Maximum Operating Pressure 210 bar | 3000 psi Flow Rate 0.45 GAL/MIN, 1.7 L/MIN | 0.45 Gal/min | 1.7 L/min
Maximum Flow Rate 0.45 Gal/min | 1.7 L/min Leak Rate 0 drops/min
Maximum Inlet Pressure Rating 210 bar | 3000 PSI, 210 BAR | 3000 psi Filter Efficiency Rating ISO 4406 18/16/13, SAE Class 4
Cavity Size C08-2 Operating Temperature -30 to +250 °F | -34 to +121 °C
Maximum Operating Temperature +250 °F | +121 °C Minimum Operating Temperature -34 °C | -30 °F
Response Time 10 ms Installation Torque 22 lb-ft | 30 Nm
Coil Nut Tightening Torque 3 lb-ft | 4.1 Nm Actuation Type Electrical
For Fluid Type Mineral-based or synthetic hydraulic fluids Coil Type 1/2″ Super Coil
Operation Type Solenoid operated Mounting Type Screw in cartridge valve
Maximum Kinematic Viscosity 45-2000 SSU (6 to 420 cSt) Input Voltage 85% of rated voltage at 72°F (20°C) min
Weight 0.14 kg | 0.31 lb
