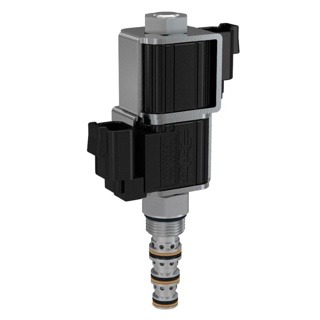

GS025100N 3/4 Way Closed Center Valve
$517.83
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Explore Parker’s extensive range of direct acting 4-way, 3-position spool-type solenoid valves, offering high flow capabilities up to 57 lpm (15 gpm) and operating pressures of up to 350 bar (5000 psi). Choose from closed, open, float, and tandem centers to suit diverse application needs.
Additional information
Product Specifications
| Part Number | GS025100N | Brand | Parker |
| Configuration | Closed Center | Division | Hydraulic Cartridge Systems Division |
| Function | 4-way | Seal Material | Nitrile |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 350 bar | 5000 psi |
| Maximum Tank Pressure | 210 bar | 3000 psi | Flow Rate | 4.5 Gal/min | 4.5 GAL/MIN, 17 L/MIN | 17 L/min |
| Maximum Flow Rate | 4.5 Gal/min | 17 L/min | Leak Rate | 250 @ 5000 PSI (350 BAR) cm3/min |
| Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C08-4 | Minimum Operating Temperature | -34 °C | -30 °F |
| Maximum Operating Temperature | +250 °F | +121 °C | Operating Temperature | -30 to +250 °F | -34 to +121 °C |
| Response Time | 50 ms | Coil Nut Tightening Torque | 3 lb-ft | 4.1 Nm |
| Installation Torque | 22 lb-ft | 30 Nm | Actuation Type | Electrical |
| Seal Type | Nitrile | Mounting Type | Screw in cartridge valve |
| Coil Type | 1/2″ Super Coil | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Operation Type | Solenoid operated | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.18 kg | 0.4 lb |
