GS02 86 10 N 2/2 PTC valve no
$1,151.64
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

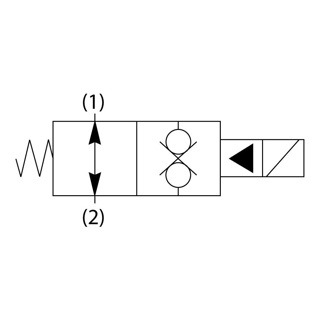

Introducing Parker’s GS02 86 10 N 2/2 PTC valve – a high-performance 2-way bi-directional poppet solenoid valve that effectively blocks flow in both directions with minimal leakage. This versatile valve comes in both normally-open and normally-closed configurations, with the capability to handle pressures up to 350 bar (5000 psi) and flows up to 285 lpm (75 gpm).
Additional information
Product Specifications
| Part Number | GS028610N | Brand | Parker |
| Configuration | Normally Open | Flow Direction | Bi-directional |
| Division | Hydraulic Cartridge Systems Division | Function | 2-way |
| Override Functionality | Non-Detented | Wire Mesh Screen Included | No |
| Seal Material | Nitrile | Valve Material | All parts steel. All operating parts hardened steel |
| Seat Material | Steel | Maximum Operating Pressure | 350 bar | 5000 psi |
| Flow Rate | 9 Gal/min | 9 GAL/MIN, 34 L/MIN | 34 L/min | Maximum Flow Rate | 9 Gal/min | 34 L/min |
| Leak Rate | 5 drops/min | Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C08-2 |
| Maximum Operating Temperature | +250 °F | +121 °C | Minimum Operating Temperature | -34 °C | -30 °F |
| Operating Temperature | -30 to +250 °F | -34 to +121 °C | Response Time | 40 ms |
| Installation Torque | 22 lb-ft | 30 Nm | Coil Nut Tightening Torque | 3 lb-ft | 4.1 Nm |
| Actuation Type | Electrical, Manual | Coil Type | 1/2″ Super Coil High Watt (CCP) |
| Operation Type | Solenoid operated, Manually operated | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Mounting Type | Screw in cartridge valve | Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) |
| Input Voltage | 85% of rated voltage at 72°F (20°C) min | Weight | 0.14 kg | 0.31 lb |
