DSL105C1 Ptc Retn.ventile 4/3
$1,323.52
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

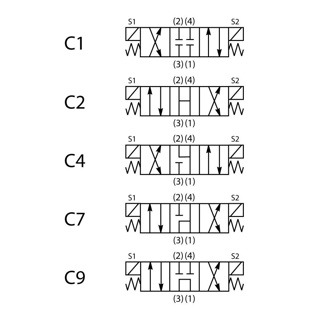

Discover a wide range of direct acting 4-way, 3-position spool-type solenoid valves by Parker. These valves handle flow requirements up to 57 lpm (15 gpm) and pressures up to 350 bar (5000 psi). Different center options including closed, open, float, and tandem are available.
Additional information
Product Specifications
| Part Number | DSL105C1 | Brand | Parker |
| Configuration | Closed Center | Division | Hydraulic Cartridge Systems Division |
| Function | 4-way | Seal Material | D-Ring (Standard) |
| Valve Material | All parts steel. All operating parts hardened steel | Maximum Operating Pressure | 250 bar | 3600 psi |
| Flow Rate | 7 GAL/MIN, 26 L/MIN | 7 Gal/min | 26 L/min | Leak Rate | 160 @ 3600 PSI (250 BAR) cm3/min |
| Maximum Flow Rate | 7 Gal/min | 26 L/min | Maximum Inlet Pressure Rating | 250 bar | 3600 PSI, 250 BAR | 3600 psi |
| Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 | Cavity Size | C10-4 |
| Operating Temperature | -35 to +200 °F | -37 to +93 °C | Maximum Operating Temperature | +93 °C | +200 °F |
| Minimum Operating Temperature | -35 °F | -37 °C | Response Time | 40-150 ms |
| Installation Torque | 37-41 lb-ft | 50-56 Nm | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Seal Type | D-Ring (Standard) | Actuation Type | Electrical |
| Operation Type | Solenoid operated | Mounting Type | Screw in cartridge valve |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Coil Type | 5/8″ Super Coil |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.29 kg | 0.64 lb |
