DSL082N Replacement of DS092NDSL082N CREATION OF
$464.11
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

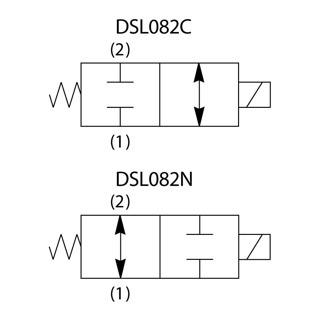

Replace your DS092N with the versatile DSL082N, designed specifically for North American markets. Parker’s direct-acting 2-way, 2-position spool-type solenoid valves are capable of handling flows up to 75 lpm (20 gpm) and pressures up to 350 bar (5000 psi), offering both normally-closed and normally-open options.
Additional information
Product Specifications
| Part Number | DSL082N | Brand | Parker |
| Configuration | Normally Open | Division | Hydraulic Cartridge Systems Division |
| Function | 2-way | Wire Mesh Screen Included | No |
| Seal Material | D-Ring | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Operating Pressure | 250 bar | 3600 psi | Flow Rate | 3 GAL/MIN, 11 L/MIN | 3 Gal/min | 11 L/min |
| Maximum Flow Rate | 3 Gal/min | 11 L/min | Leak Rate | 120 CC/min @ 3600 PSI (250 BAR) cm3/min |
| Maximum Inlet Pressure Rating | 250 bar | 3600 PSI, 250 BAR | 3600 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C08-2 | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Minimum Operating Temperature | -35 °F | -37 °C |
| Response Time | 40 ms | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Installation Torque | 23-27 lb-ft | 31-37 Nm | Actuation Type | Electrical |
| Mounting Type | Screw in cartridge valve | Operation Type | Solenoid operated |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Coil Type | 1/2″ Super Coil |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.11 kg | 0.25 lb |
