Valve Assembly -12 N.O.
DSL082N Replacement of DS092NDSL082N CREATION OF

Dsh121nr no popped solenoid

$726.54

Contact us for Pricing
Availability: Out of stock Category:
  • Payment by invoice possible
  • Not currently in stock, contact us for factory lead times
  • Payment by invoice possible
  • In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
  • Del Rey is proud to be the exclusive distributor of Waagene products
  • Payment by invoice possible
  • Low quantities typically kept on hand; please contact us for availability at lead time
  • Authorized miniBOOSTER distributor & hydraulic excellence partner

Product Description

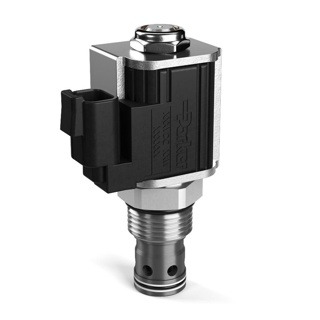

Introducing the Dsh121nr poppet solenoid valve – designed to control flow direction with ease. This high-performance valve is your go-to choice for pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm). Whether you need a normally-open or normally-closed configuration, this valve has you covered, all while ensuring low leakage.

Additional information

Product Specifications

Part Number DSH121NR Brand Parker
Configuration Normally Open Flow Direction Side to Nose (2-1)
Division Hydraulic Cartridge Systems Division Free Reverse Flow Yes
Function 2-way Wire Mesh Screen Included No
Seal Material Nitrile Valve Material All parts steel. All operating parts hardened steel
Maximum Operating Pressure 350 bar | 5000 psi Flow Rate 24 GAL/MIN, 90 L/MIN | 24 Gal/min | 90 L/min
Maximum Flow Rate 24 Gal/min | 90 L/min Leak Rate 5 drops/min
Maximum Inlet Pressure Rating 350 bar | 5000 PSI, 350 BAR | 5000 psi Filter Efficiency Rating ISO 4406 18/16/13, SAE Class 4
Cavity Size C12-2 Maximum Operating Temperature +250 °F | +121 °C
Minimum Operating Temperature -34 °C | -30 °F Operating Temperature -30 to +250 °F | -34 to +121 °C
Response Time 70 ms Installation Torque 92-96 lb-ft | 125-131 Nm
Coil Nut Tightening Torque 5-7 lb-ft | 7-10 Nm Actuation Type Electrical
Mounting Type Screw in cartridge valve Operation Type Solenoid operated
For Fluid Type Mineral-based or synthetic hydraulic fluids Coil Type 5/8″ Super Coil
Maximum Kinematic Viscosity 45-2000 SSU (6 to 420 cSt) Input Voltage 85% of rated voltage at 72°F (20°C) min
Weight 0.29 kg | 0.65 lb
