DSH103A PTC 3/2 valve
$412.65
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

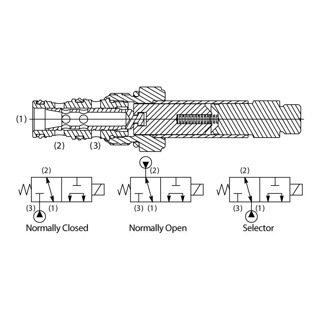

Introducing the DSH103A PTC 3/2 valve from Parker – a direct-acting, 3-way, 2-position spool-type valve designed for a broad range of flows of up to 57 lpm (15 gpm) and pressures of up to 350 bar (5000 psi). These screw-in cartridge valves offer rapid response to coil voltage.
Additional information
Product Specifications
| Part Number | DSH103A | Brand | Parker |
| Configuration | Normally Closed, Normally Open, Selector | Flow Direction | 2-1 De-energized, 3-1 Energized |
| Division | Hydraulic Cartridge Systems Division | Function | 3-way |
| Seal Material | D-Ring (Standard) | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Operating Pressure | 350 bar | 5000 psi | Flow Rate | 4. 4.5 Gal/min | 4, 4.5 GAL/MIN, 15, 17 L/MIN | 15, 17 L/min |
| Maximum Flow Rate | 4.5 Gal/min | 17 L/min | Leak Rate | 160 @ 5000 PSI (350 BAR) cm3/min |
| Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C10-3 | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Minimum Operating Temperature | -35 °F | -37 °C |
| Response Time | 50-100 ms | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Installation Torque | 51-55 lb-ft | 69-75 Nm | Actuation Type | Electrical |
| Operation Type | Solenoid operated | Coil Type | 5/8″ Super Coil |
| Mounting Type | Screw in cartridge valve | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.19 kg | 0.42 lb |
