DSH102N 2/2-valve normally open
$354.51
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description

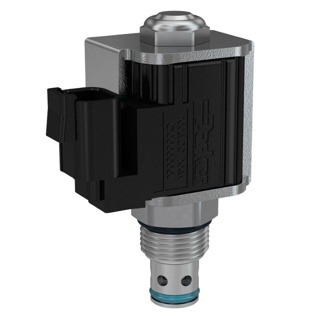

Parker’s DSH102N 2/2-valve is a high-capacity, direct-acting solenoid valve that can handle flows up to 75 lpm and pressures up to 350 bar. It comes in both normally open and normally closed configurations.
Additional information
Product Specifications
| Part Number | DSH102N | Brand | Parker |
| Configuration | Normally Open | Division | Hydraulic Cartridge Systems Division |
| Function | 2-way | Wire Mesh Screen Included | No |
| Seal Material | D-Ring | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Operating Pressure | 350 bar | 5000 psi | Flow Rate | 5 GAL/MIN, 19 L/MIN | 5 Gal/min | 19 L/min |
| Leak Rate | 160 CC/min @ 5000 PSI (350 BAR) cm3/min | Maximum Flow Rate | 5 Gal/min | 19 L/min |
| Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C10-2 | Maximum Operating Temperature | +93 °C | +200 °F |
| Minimum Operating Temperature | -35 °F | -37 °C | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Response Time | 50 ms | Installation Torque | 51-55 lb-ft | 69-75 Nm |
| Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm | Actuation Type | Electrical |
| Operation Type | Solenoid operated | Coil Type | 5/8″ Super Coil |
| Mounting Type | Screw in cartridge valve | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.18 kg | 0.4 lb |
