DSH101NR 2/2 Seat valve, normally open
$697.91
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
Discover the versatility of the DSH101NR 2/2 Seat valve, a normally open Parker solenoid valve designed for high-pressure applications. With the capability to handle pressures up to 350 bar (5000 psi) and flows up to 260 lpm (70 gpm), this valve is ideal for ensuring optimal flow control in either the normally open or normally closed configurations. Its low leakage and reliable performance make it a valuable asset for various industrial needs.
Additional information
Product Specifications
| Part Number | DSH101NR | Brand | Parker |

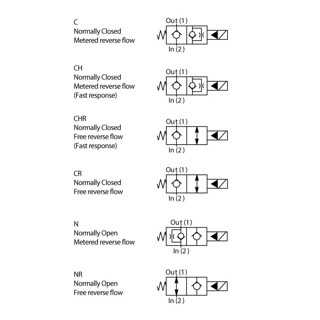

| Configuration | Normally Open | Flow Direction | Side to Nose (2-1) |
| Division | Hydraulic Cartridge Systems Division | Free Reverse Flow | Yes |
| Function | 2-way | Wire Mesh Screen Included | No |
| Seal Material | D-Ring (Standard) | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Operating Pressure | 350 bar | 5000 psi | Flow Rate | 15 GAL/MIN, 60 L/MIN | 15 Gal/min | 60 L/min |
| Maximum Flow Rate | 15 Gal/min | 60 L/min | Leak Rate | 5 drops/min |
| Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C10-2 | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Minimum Operating Temperature | -35 °F | -37 °C | Maximum Operating Temperature | +93 °C | +200 °F |
| Response Time | 70 ms | Installation Torque | 51-55 lb-ft | 69-75 Nm |
| Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm | Actuation Type | Electrical |
| Operation Type | Solenoid operated | Coil Type | 5/8″ Super Coil |
| Mounting Type | Screw in cartridge valve | For Fluid Type | Mineral-based or synthetic hydraulic fluids |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.2 kg | 0.41 lb |
