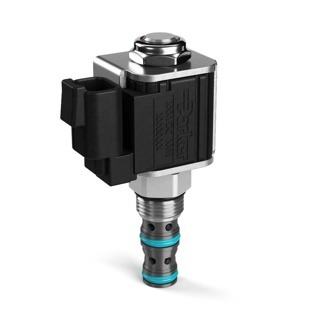

DSH083N PTC 3/2 valve 3-way
$500.58
- Payment by invoice possible
- Not currently in stock, contact us for factory lead times
- Payment by invoice possible
- In stock at factory, ready to ship in estimated 1-2 weeks, contact us for expedited options
- Del Rey is proud to be the exclusive distributor of Waagene products
- Payment by invoice possible
- Low quantities typically kept on hand; please contact us for availability at lead time
- Authorized miniBOOSTER distributor & hydraulic excellence partner
Product Description
The DSH083N PTC 3/2 valve from Parker is a direct acting spool-type valve designed for a wide range of flows up to 57 lpm (15 gpm) and pressures up to 350 bar (5000 psi). It offers fast response to coil voltage, making it versatile and efficient.
Additional information
Product Specifications
| Part Number | DSH083N | Brand | Parker |
| Configuration | Normally Open, Selector | Flow Direction | 2-3 De-energized, 2-1 Energized |
| Division | Hydraulic Cartridge Systems Division | Function | 3-way |
| Seal Material | D-Ring (Standard) | Valve Material | All parts steel. All operating parts hardened steel |
| Maximum Operating Pressure | 350 bar | 5000 psi | Flow Rate | 3, 4 GAL/MIN, 11.3, 15 L/MIN | 3, 4 Gal/min | 11.3, 15 L/min |
| Maximum Flow Rate | 4 Gal/min | 15 L/min | Leak Rate | 250 @ 5000 PSI (350 BAR) cm3/min |
| Maximum Inlet Pressure Rating | 350 bar | 5000 PSI, 350 BAR | 5000 psi | Filter Efficiency Rating | ISO 4406 18/16/13, SAE Class 4 |
| Cavity Size | C08-3 | Operating Temperature | -35 to +200 °F | -37 to +93 °C |
| Maximum Operating Temperature | +93 °C | +200 °F | Minimum Operating Temperature | -35 °F | -37 °C |
| Response Time | 50 ms | Coil Nut Tightening Torque | 5-7 lb-ft | 7-10 Nm |
| Installation Torque | 32-36 lb-ft | 43-49 Nm | Actuation Type | Electrical |
| Operation Type | Solenoid operated | Coil Type | 1/2″ Super Coil |
| For Fluid Type | Mineral-based or synthetic hydraulic fluids | Mounting Type | Screw in cartridge valve |
| Maximum Kinematic Viscosity | 45-2000 SSU (6 to 420 cSt) | Input Voltage | 85% of rated voltage at 72°F (20°C) min |
| Weight | 0.13 kg | 0.28 lb |
